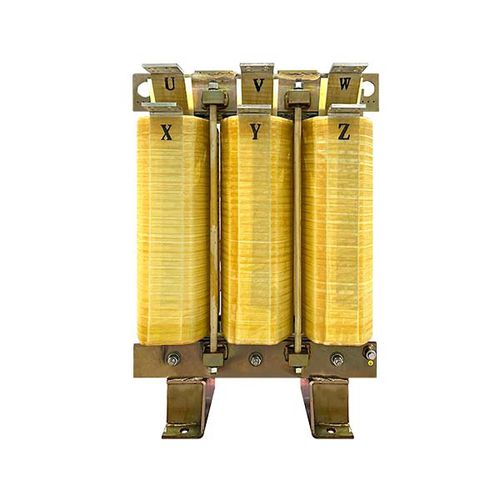

Magnetic inductor LSDZ024

RFfrequencywith AC output

Description: The AC output reactor is designed for photovoltaic inverters to suppress harmonics, stabilize grid voltage, and protect power modules in solar energy systems, ensuring compliance with grid-connection standards like IEEE 1547. Product Details 1. Advanced VPI Process for Reliability Constructed with vacuum pressure impregnation (VPI) technology, the reactor achieves uniform epoxy resin encapsulation, enhancing insulation resistance (>500MΩ) and moisture resistance (IP65 rated), ideal for desert or coastal PV plants with extreme temperature (-40°C to +85°C) and humidity fluctuations. 2.High-Efficiency Performance for Solar Applications Featuring a low-loss amorphous core and optimized winding design, it reduces total harmonic distortion (THD <3%) while handling currents up to 300A RMS at 50/60Hz. Its flat impedance curve (up to 150kHz) effectively filters high-frequency noise from PWM inverters, extending the lifespan of rooftop solar systems and utility-scale PV stations. Operation Environment A)  Altitude: Not exceeding 1000m, shall be derating used if above 1000m; B)  Ambient Temperature: -25ºC~55ºC. C)  Relative Humidity: ≤95%; D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium. E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
