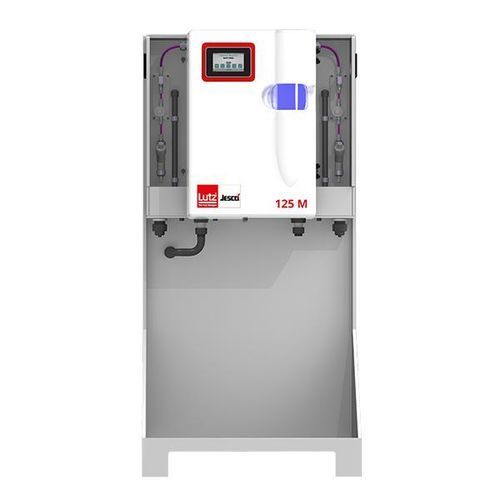

Industrial chlorine dioxide generator EASYZON M

for water treatmentfor the food industryfor swimming pool

Product information "EASYZON M - Chlorine dioxide systems for safe and precise disinfection" Pressureless and safe production of chlorine dioxide The EASYZON M is the compact complete solution for the safe on-site production of chlorine dioxide for water treatment, the food industry and process water. The system works fully automatically under vacuum - for maximum user safety, high dosing accuracy and constant disinfection performance even at high pH values. Your benefits at a glance - ✅ Safe handling under vacuum - acid and chlorite are automatically drawn from the storage containers and mixed without any pressurised systems or risk of leakage. - ✅ High process reliability - The vacuum process allows significantly longer suction distances than conventional dosing pumps, ideal for flexible system concepts. - ✅ Precise control of the chemical flows - integrated flow meters regulate the volume flows precisely; the product concentration can be set between 250 - 2000 mg/l ClO₂ as required. - ✅ Automatic replenishment - via level sensors in the integrated 8-litre product tank; ensures continuous disinfection readiness. - Intuitive control - via touchscreen, with clear system visualisation, multilingual menus and password-protected user levels. - ✅ Real-time monitoring & alarm management - forwarding of alarm messages via Modbus TCP/IP or optionally via SMS telemetry. - Efficiency & economy - low operating costs, minimised maintenance intervals and high energy efficiency significantly reduce life cycle costs. Typical areas of application - Legionella prevention in drinking water and cooling systems - CIP disinfection in the foodstuffs and beverage industry - Biocide treatment of cooling towers and recooling plants - Disinfection of municipal drinking water and process water - Secondary disinfection in public buildings - Food treatment to extend shelf life - Odour control in waste and process systems Why EASYZON M? The EASYZON M combines maximum safety, precise control and full compliance with standards in one system. Thanks to its modular design and optional skid version, the system can be seamlessly integrated into existing processes - from small waterworks to large industrial plants. Technical characteristics / specifications - Concentration: (L=Low) HCl 5-10% and NaClO2 7.5% - Dimensions: approx. 483x333x670 mm [WxDxH] - MATCHCODE: 062LMO0005L090501008W4-0143QA1R0604 - Product: EASYZON L - Type: Modular - Weight: approx. 23 kg
