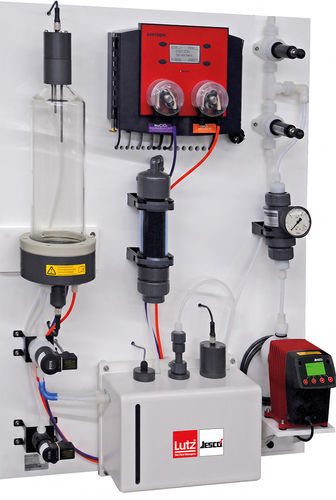

Liquid chlorine dioxide generator EASYZON® 5

for water treatmentagriculturefor hospital

Product information
The EASYZON® 5 chlorine dioxide system generates chlorine dioxide on-site using the acid–chlorite batch process and is designed for water treatment and disinfection tasks. Chlorine dioxide disinfects across a wide pH range and, as a dissolved gas, is effective against biofilms in distribution networks, including Legionella spp. and Pseudomonas aeruginosa. The system uses hydrochloric acid (9%) and sodium chlorite (7.5%) as reagents. Level control and an agitator ensure defined reaction conditions in the reactor.

Your benefits at a glance

• On-site generation: Produces the required chlorine dioxide solution directly within the unit for immediate dosing.
• Multi-point dosing: Batch tank enables dosing via several dosing pumps to multiple injection points.
• Stable product: Generated solution typically remains stable up to 24 hours at 15 °C.
• Integrated process monitoring: Control system supervises production steps; optional ambient ClO₂ sensor available.
• Compact pre-assembled unit: Reactor, control, dosing components and product tank are integrated for easy installation.

Key technical facts

• ClO₂ production capacity: 5 g/h
• ClO₂ product concentration: 2 g/l
• Usable product tank volume: 5,700 ml (5.7 litres)
• Shelf life of produced solution at 15 °C: up to 24 hours
• Operating temperature: 10 to 40 °C
• Operating voltage: 230 V, 50/60 Hz
• Protection class: IP65
• Power consumption: max. 100 W

Typical applications

• Hospitals and medical facilities
• Care homes and residential care facilities
• Hotels and accommodation providers
• Evaporative cooling systems and cooling towers
• Livestock drinking troughs and agricultural water supply
• Extensive water distribution networks

Characteristics / technical specifications

• Model / MATCHCODE: EASYZON5
• Product number: 62001030
• Production method: Batch mode (acid–chlorite process)
• Chemicals used: Hydrochloric acid (9%), Sodium chlorite (7.5%)
• Integrated components: Reactor, control system, chemical dosing unit, product tank, integrated peristaltic pumps, level control, agitator
• Optional: Ambient ClO₂ air sensor for room monitoring
• Multi-point dosing capability via several dosing pumps
• Usable product tank volume: 5.7 litres
• Produced solution concentration: 2 g/l ClO₂
• Production capacity: 5 g/h ClO₂
• Shelf life of produced solution (at 15 °C): up to 24 hours (extendable by acid surplus management)
• Operating temperature range: 10–40 °C
• Operating voltage: 230 V, 50/60 Hz
• Protection class: IP65
• Power consumption: max. 100 W
