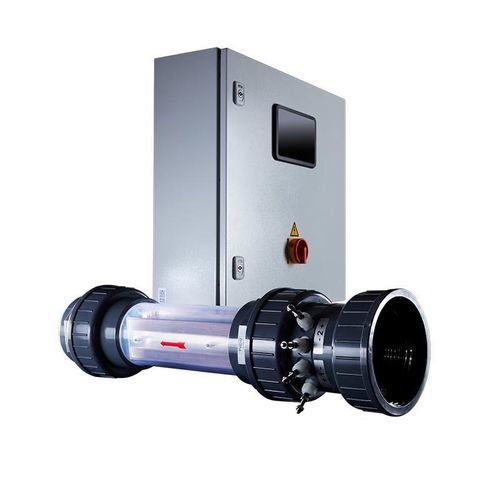

Swimming pool electrolysis unit Technostar 2000 ST

electrochlorinationon site

Product information
The TECHNOSTAR flow-through chlorine electrolysis unit produces chlorine on-site from ordinary salt (NaCl) dissolved in pool water, enabling DIN 19643‑compliant disinfection without transport or storage of hazardous chlorine substances. The process delivers slightly saline, skin‑friendly water and improves bathing comfort.

Your benefits at a glance

• Safe & standards‑compliant — disinfection without hazardous chemicals, DIN 19643 compliant.
• Improved bathing comfort — reduced eye and mucous‑membrane irritation due to salt‑based water.
• High operational safety — external enable, temperature and flow monitoring, automatic adjustment to measured water values.
• Efficient & economical — salt (NaCl) as the only consumable, low maintenance, long service life of electrolysis cells.
• Flexible deployment — adjustable output 30–250 g Cl2/h, continuous regulation; simple installation.

Typical areas of application

• Public indoor and outdoor swimming pools
• Hotel and wellness facilities
• Leisure pools and water parks
• Municipal bathing facilities with high hygiene requirements
• Thermal baths and spa areas
• Rehabilitation centres and clinics

Why TECHNOSTAR?
TECHNOSTAR combines high operational safety, low operating costs and improved user comfort by generating chlorine on site from NaCl. The system controls algae, germs and bacteria with minimal maintenance and reliable operation.

Scope of delivery
The TECHNOSTAR is supplied as a ready‑to‑connect system including all essential components; exact scope depends on the chosen version. Basic delivery includes:

• Switch cabinet with control unit
• Electrolytic cell(s)
• Connection cable(s)
• Screw‑in fittings

Product properties / Technical specifications

• Product name: TECHNOSTAR 2000 ST
• Brand: Lutz-Jesco GmbH
• Product number / order number: 91130001
• Disinfection principle: Flow‑through chlorine electrolysis (chlorine generation from NaCl in pool water)
• Standards: DIN 19643 compliant
• Operating material: Ordinary salt (NaCl) only
• Output range: 30–250 g Cl2/h, continuously adjustable
• Operational safety features: External enable, temperature and flow control, automatic adjustment to measured water values
• Maintenance: Low maintenance; long service life of electrolysis cells
• Configuration options: Number of electrolysis cells selectable (1–4)
• Supplied as: Ready‑to‑connect system
• Availability: Delivery time on request; product offered on request‑for‑quote basis
