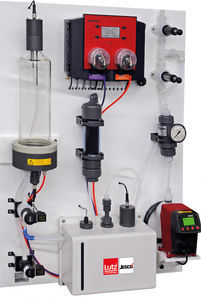

Liquid chlorine dioxide generator EASYZON® D

protectivefor aquacultureagriculture

Product information "EASYZON® D chlorine dioxide generator"
The EASYZON® D chlorine dioxide generator is designed for on-site production of chlorine dioxide (ClO₂) for disinfection of drinking water, process water and wastewater. ClO₂ delivers effective disinfection across a wide pH range and provides a pronounced residual effect, making it suitable for extensive distribution networks.

Process and operation

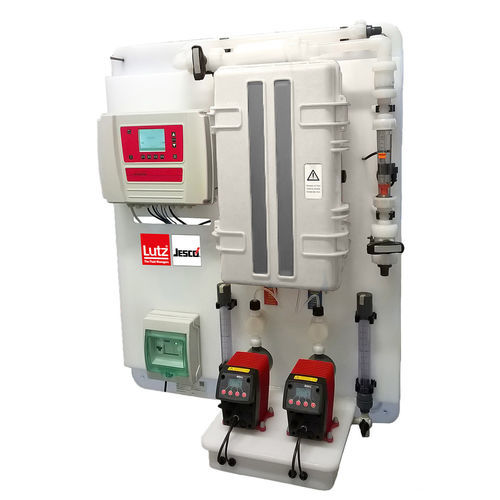

The system operates according to the acid-chlorite process using hydrochloric acid and sodium chlorite. Chemical dosing is performed by dosing pumps with calibration cylinders, back-pressure valves and pulse flow monitors. The pressure-resistant reactor is housed in a protective cabinet. At the reactor outlet the produced ClO₂ solution is pre-diluted with water via a static mixer and then fed to the point of use or, depending on configuration, into a batch tank.

Control and interfaces
The control system monitors chemical dosing and the dilution water flow and signals critical operating conditions. External integration options include signal relays, 4–20 mA inputs/outputs and RS-232 and RS-485 interfaces to connect to higher-level control systems.

Your benefits at a glance

• On-site ClO₂ generation: Production directly at the point of use for immediate supply to the water treatment process.
• Wide capacity range: Unit sizes cover production from 18 to 1,478 g ClO₂/h at 4 bar.
• Operational monitoring: Control system regulates dosing and dilution flow and alerts the operator to critical conditions.
• Direct or batch operation: Configurable for continuous (D-D) or batch (D-B) operation to suit process requirements.
• Plant integration: External signals and standard interfaces enable integration into existing plant control systems.

Key technical specifications

• Production capacity (4 bar): 18–1,478 g ClO₂/h
• Reactor concentration: 20 g ClO₂/l
• Product concentration D-D: < 2 g ClO₂/l
• Product concentration D-B: 0.5–2 g ClO₂/l
• Supply voltage: 230 V / 50 Hz
• Protection class: IP54
• Operating ambient temperature: 5–40 °C

Typical applications

• Hospitals and medical facilities
• Care homes and residential care facilities
• Hotels and accommodation providers
• Evaporative cooling systems and cooling towers
• Livestock drinking troughs and agricultural water supply
• Extensive water distribution networks

Additional product notes

• Available production stages (examples): 18 / 32 / 72 / 115 / 247 / 613 / 844 / 1,478 g ClO₂/h.
• Chemical dosing via dosing pumps with calibration cylinders; pre-dilution via static mixer at reactor outlet.
• Available in direct or batch configurations; integrated monitoring and multiple external interfaces for plant integration.
• Delivery time: on request.
• Product number (internal): 62003026
