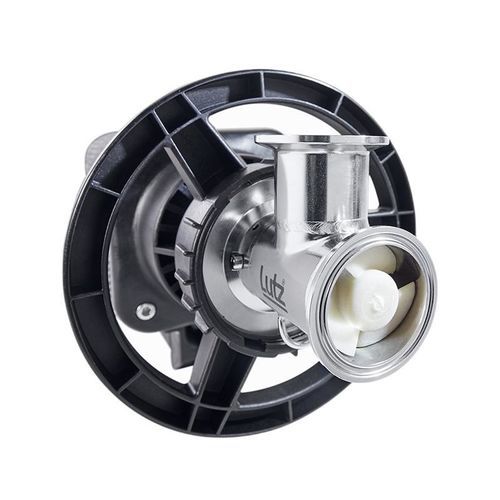

Radial pump B200 Niro

acidfor basesfor solvents

Product overview
The horizontal pumping station B200 Niro 41-L-GLRD is designed for safe transfer and complete emptying of aggressive, low-viscosity, flammable and potentially explosive liquids from IBC containers and tanks. The unit uses a Niro stainless-steel pump tube with an ETFE radial impeller. Multiple drive options are available and can be combined with the pumping unit to suit the application.

Applications

• Emptying IBCs and tanks containing acids, solvents, oils, disinfectants and alternative fuels
• Chemical dosing, maintenance, cleaning and fuel handling in industrial environments

Features & advantages

• Horizontal bottom connection for near-complete drainage
• Low residual fluid loss on disconnection
• Available in explosion-proof versions for Zone 1 and 2
• Compact design and easy to dismantle for maintenance
• Interchangeable electric or compressed-air drives

Technical data

• Model: B200 Niro 41-L-GLRD
• Pump tube material: Niro (stainless steel)
• Impeller material: ETFE
• Drive shaft: Stainless steel (1.4571)
• Static seal: FPM (fluororubber); Mechanical seal: GLRD
• Max. flow rate: 117 l/min
• Max. head: 20 m
• Max. liquid temperature: 100 °C
• Max. fluid density: 2.8 kg/dm³
• Max. viscosity: 1000 mPas
• External thread: 1 1/4"
• Suitable fluids: acids, disinfectants, cleaning agents, emulsions, lyes, mineral oils, solvents, vegetable oils, water

Notes
Actual performance depends on fluid properties, drive selection and configuration. For hazardous-area installations, select the appropriate explosion-proof drive and certificates.
