Impeller pump B200 Niro

for alkalisacidfor solvents

Product overview

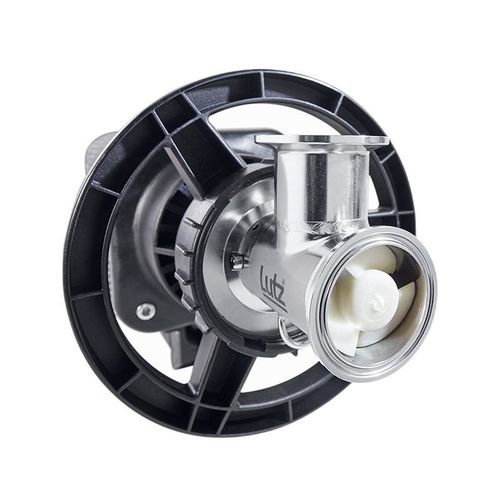

The horizontal pump tube B200 Niro 41-L-GLRD is designed for emptying aqueous and fatty foodstuffs from IBC containers or tanks and serves as an alternative to vertical drum pumps. The unit accepts different drives (electric or compressed air) and can be combined with various motors to match the application and site requirements.

Applications

• Emptying IBC containers and tanks
• Food processing (including alcoholic foods)
• Cosmetics and pharmaceutical transfer
• Transfer of flammable cleaning agents and solvents

Features & benefits

• Horizontal connection at the container bottom (Tri‑Clamp DN32)
• Equipped with Lutz Original handwheel
• Selectable electric or compressed‑air drive
• Low medium loss on disconnection
• Physiologically safe design (PURE) with hygienic/aseptic connections
• Compact footprint for space‑restricted installations
• Suitable for food contact per Regulation (EC) 1935/2004 and FDA
• ATEX certified (Directive 2014/34/EU, category 1/2) for explosive atmospheres

Technical specifications

• Type: B200 Niro 41-L-GLRD
• Pump tube material: Niro (stainless steel)
• Connection: Tri‑Clamp (DN 32)
• Impeller: radial impeller, material ETFE
• Drive shaft material: stainless steel (1.4571)
• Bearings: high‑quality charcoal
• Static seal material: FPM (fluororubber)
• Max. flow rate: 117 l/min*
• Max. head: 20 m wc*
• Max. fluid temperature: 100 °C
• Max. density of medium: 2.8 kg/dm³
• Max. viscosity: 1000 mPas*
• Suitable fluids: water; mineral and vegetable oils; acids; alkalines; emulsions; disinfectants; solvents; cleaning agents; care products
• Certifications: ATEX 2014/34/EU (category 1/2), FDA‑compliant, Regulation (EC) 1935/2004

Notes
*Maximum values determined on test bench with water at approx. 20 °C; achievable service values depend on application, fluid properties and pump configuration.
