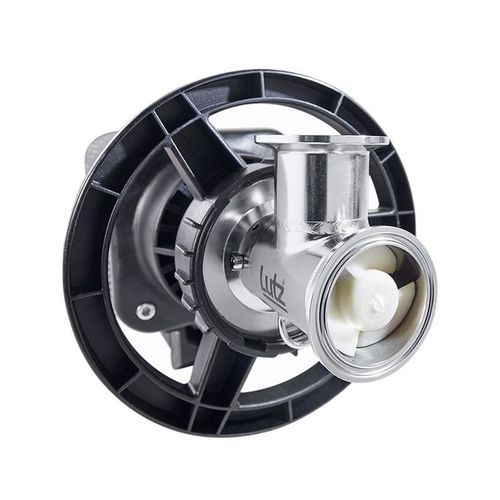

Impeller pump B200 Niro

for alkalisacidfor solvents

Description
The horizontal pump tube B200 Niro 41-L-GLRD is designed to empty aqueous and fatty foodstuffs from IBC containers and tanks. It serves as an industrial alternative to vertical drum pumps and can be combined with different drives depending on the application to ensure operational flexibility.

• Horizontal Tri‑Clamp connection at the container bottom (DN32)
• Pumping unit equipped with Lutz Original handwheel
• Suitable for alcoholic food applications, cosmetics, pharmaceutical products and flammable cleaning agents

Features & benefits

• Available with electric or compressed air drive options
• Low product loss during disconnection
• Physiologically safe design (PURE) for food contact
• Hygienic / aseptic connections
• Compact footprint for tight installations
• Compliant with Regulation (EC) 1935/2004 and FDA for food contact

Technical specifications (extract)

• Type: B200 Niro 41-L-GLRD
• Pump tube material: Niro (stainless steel)
• Connection: Tri‑Clamp
• Connection Tri‑Clamp (DN): 32
• Drive shaft (material): Stainless steel (1.4571)
• Impeller (material): ETFE (ethylene tetrafluoroethylene copolymer)
• Impeller type / Drive type: Impeller (radial impeller)
• Seal type: Mechanical seal (GLRD)
• Static seal (material): EPDM
• Bearings (material): Carbon
• Flow rate (up to max. l/min): 117
• Delivery head (up to max. m wc): 20
• Viscosity (up to max. mPas): 1000
• Liquid temperature (max °C): 100
• Density (up to kg/dm³): 2.8
• Suitable fluids: Water, vegetable oils, mineral oils, acids, alkalis, emulsions, disinfectants, cleaning agents, solvents, care products
• Certifications: FDA-compliant, Regulation (EC) 1935/2004
