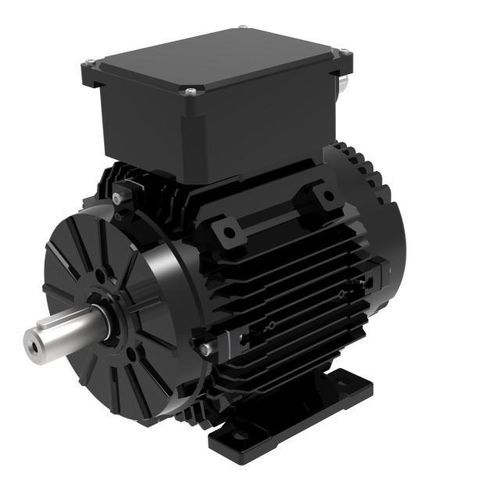

EC motor T90ECIelectronically commutatedsynchronouspermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, EC, electronically commutated
- Configuration
- permanent magnet
- Protection class
- IP55, IP66
- Efficiency classes
- IE5
- Other characteristics
- RS-485, integrated speed control 0-10 V
- Power
Max.: 2.2 kW
(2.99 hp)Min.: 0.2 kW
(0.27 hp)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -25 °C
(-13 °F)
Description
Product Name T90ECI
Product Overview
Operating Conditions
Communications & Control
Mounting
Protection Functions
Compliance & Warranty
Technical specifications
Product Overview
- Series: T Series ECI motor (permanent magnet synchronous motor, PMSM)
- Power range: T90, 0.2 kW – 2.2 kW
Operating Conditions
- Ambient temperature: -25℃ to 40℃
- Protection class: IP55 – IP66
Communications & Control
- Communication protocols: Modbus RS485, 0–10V, PWM
Mounting
- Mounting options: DIN Rail, B14, B3, B34, B5, B35, etc.
Protection Functions
- Overcurrent protection
- Rotor blockage detection
- Phase-loss detection
- IPM over-temperature protection
- Reverse-wind startup protection
Compliance & Warranty
- Certifications: CE / ETL
- Warranty period: 12 months
- Energy efficiency class: IE5 (compliant with IEC 60034-30-1)
Technical specifications
- Model: T90ECI
- Series: T Series (ECI)
- Power range: 0.2 kW – 2.2 kW
- Ambient temperature range: -25℃ to 40℃
- Protection class: IP55 – IP66
- Communication protocols: Modbus RS485, 0–10V, PWM
- Mounting options: DIN Rail, B14, B3, B34, B5, B35, etc.
- Protection features: Overcurrent, rotor blockage, phase-loss detection, IPM over-temperature protection, reverse-wind startup protection
- Certifications: CE, ETL
- Warranty: 12 months
- Energy efficiency: IE5 (IEC 60034-30-1)
