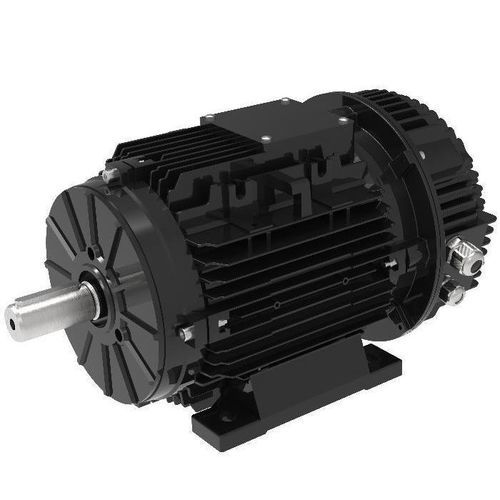

Synchronous motor T100ECIpermanent magnetIP55IP66
Add to favorites
Compare this product
Characteristics
- Type
- synchronous
- Configuration
- permanent magnet
- Protection class
- IP55, IP66
- Efficiency classes
- IE5
- Applications
- for pump, for conveyors, for robotics, for fans, for machine tools, for compressors
- Other characteristics
- high-efficiency, IEC, energy-saving, RS-485, integrated speed control 0-10 V
- Power
Max.: 3.58 kW
(4.87 hp)Min.: 0.63 kW
(0.86 hp)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -25 °C
(-13 °F)
Description
Product Name
T100ECI
Series / Type
T Series ECI motor (PMSM)
Key features
Technical specifications
Certifications & warranty
Typical applications
T100ECI
Series / Type
T Series ECI motor (PMSM)
Key features
- Power range: 0.63 kW–3.58 kW (T100)
- Energy efficiency: IE5 (per IEC 60034-30-1)
- Operating ambient temperature: -25 ℃ to 40 ℃
- Ingress protection: IP55–IP66
- Communication: Modbus RS485, 0–10 V, PWM
- Mounting options: DIN rail, B14, B3, B34, B5, B35
- Protection functions: overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse-wind startup protection
Technical specifications
- Model: T100ECI
- Power: 0.63–3.58 kW
- Ambient temperature range: -25 ℃ to 40 ℃
- Ingress protection: IP55–IP66
- Communication protocols: Modbus RS485; 0–10 V; PWM
- Mounting: DIN rail, B14, B3, B34, B5, B35 (and others)
- Protection features: overcurrent, rotor blockage, phase loss, IPM over-temperature protection, reverse-wind startup protection
- Efficiency class: IE5 (IEC 60034-30-1)
Certifications & warranty
- Certifications: CE, ETL
- Warranty: 12 months
Typical applications
- Industrial pumps and fans
- Conveyors and material handling
- HVAC systems
- Automation and robotics
- Compressors and machine tools
Catalogs
T Series of ECI Motor
28 Pages
