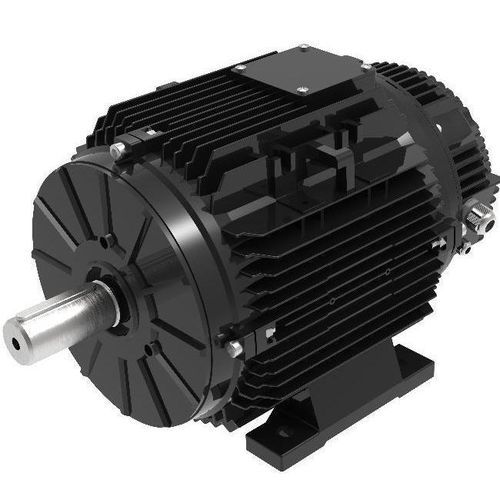

EC motor T132ECIIP55IP66IE5
Add to favorites
Compare this product
Characteristics
- Type
- EC
- Protection class
- IP55, IP66
- Efficiency classes
- IE5
- Applications
- industrial
- Other characteristics
- RS-485, with variable frequency drive, integrated speed control 0-10 V
- Power
Max.: 3.54 kW
(4.81 hp)Min.: 1.63 kW
(2.22 hp)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
The T132ECI is a variable frequency drive (VFD) engineered for industrial motor control. It covers a power range of 1.63 kW–3.54 kW, operates between -25℃ and 40℃, and provides protection classes from IP55 to IP66. Interfaces include Modbus RS485, 0–10V and PWM. Mounting options support DIN rail and common motor/flange arrangements (B14, B3, B34, B5, B35).
Protection functions
Certifications & warranty
Technical specifications
The T132ECI is a variable frequency drive (VFD) engineered for industrial motor control. It covers a power range of 1.63 kW–3.54 kW, operates between -25℃ and 40℃, and provides protection classes from IP55 to IP66. Interfaces include Modbus RS485, 0–10V and PWM. Mounting options support DIN rail and common motor/flange arrangements (B14, B3, B34, B5, B35).
Protection functions
- Overcurrent protection
- Rotor blockage detection
- Phase loss detection
- IPM over-temperature protection
- Reverse-wind startup protection
Certifications & warranty
- Certifications: CE, ETL
- Warranty period: 12 months
- Energy efficiency class: IE5 (compliant with IEC 60034-30-1)
Technical specifications
- Model: T132ECI
- Power range: 1.63 kW – 3.54 kW
- Ambient temperature: -25℃ to 40℃
- Protection class: IP55 – IP66
- Communication protocols: Modbus RS485; 0–10V; PWM
- Mounting methods: DIN rail; B14; B3; B34; B5; B35
- Protection functions: Overcurrent; Rotor blockage; Phase loss; IPM over-temperature protection; Reverse-wind startup protection
- Certifications: CE, ETL
- Warranty period: 12 months
- Energy efficiency class: IE5 (IEC 60034-30-1)
