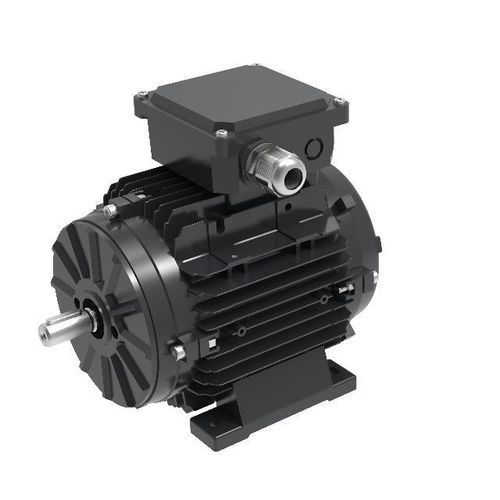

EC motor T71ECIelectronically commutatedsynchronouspermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, EC, electronically commutated
- Configuration
- permanent magnet
- Protection class
- IP55, IP66
- Efficiency classes
- IE5
- Applications
- industrial
- Other characteristics
- variable-speed, RS-485, integrated speed control 0-10 V
- Power
Max.: 1 kW
(1.36 hp)Min.: 0.19 kW
(0.26 hp)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -25 °C
(-13 °F)
Description
Product Name
T71ECI
Series / Type
T-series ECI motor (PMSM)
Product Description
EC (electronically commutated) permanent-magnet synchronous motor from the T-series ECI family. Model T71ECI is intended for variable-speed industrial applications and provides IE5 efficiency, integrated protection features and communication interfaces for automation systems.
Technical specifications
T71ECI
Series / Type
T-series ECI motor (PMSM)
Product Description
EC (electronically commutated) permanent-magnet synchronous motor from the T-series ECI family. Model T71ECI is intended for variable-speed industrial applications and provides IE5 efficiency, integrated protection features and communication interfaces for automation systems.
Technical specifications
- Power range: T71, 0.19 kW–1.0 kW
- Ambient temperature: -25 °C to 40 °C
- Protection class: IP55–IP66
- Communication protocol: Modbus RS485, 0–10 V, PWM
- Mounting methods: DIN rail, B14, B3, B34, B5, B35, etc.
- Protection functions: overcurrent, rotor blockage, phase loss, IPM over-temperature protection, reverse-wind startup protection
- Certifications: CE / ETL
- Warranty period: 12 months
- Energy efficiency class: IE5 (compliant with IEC 60034-30-1)
