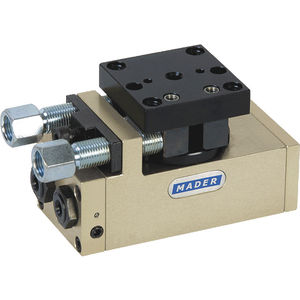

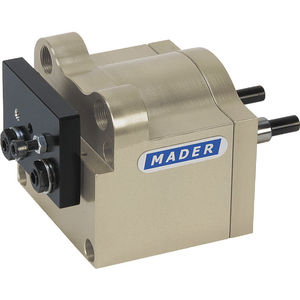

Swivel unit SEK-K-4

Swivel unit SEK-K-4 for small installation spaces Input torque (effective): 0,28 Nm Rotation angle: 0 – 190° Repeating accuracy: ± 0,01° Stop system: External, hardened End position: No loss of the end position through bolted proximity switch in the stop sleeve Drive cylinder: double-pressurized Cylinder-Ø: 2 x 10 mm Breakdown torque max.: 3 Nm Axial load: 300 N Radial load: 220 N Air consumption at 180° (double stroke): 5 cm³ Weight: 0,24 kg Drive: Compressed air (4 – 8 bar), steady, filtered (10 µm) and dried, lubricated or unlubricated Control: 4/2- or 5/2-way valve Connection: M5 Material of casing: High-strength aluminium, anodised Size: 4 Movement type: rotatory Movement group: swivel Price information: Due to price increases on the raw materials market, some items include a surcharge
