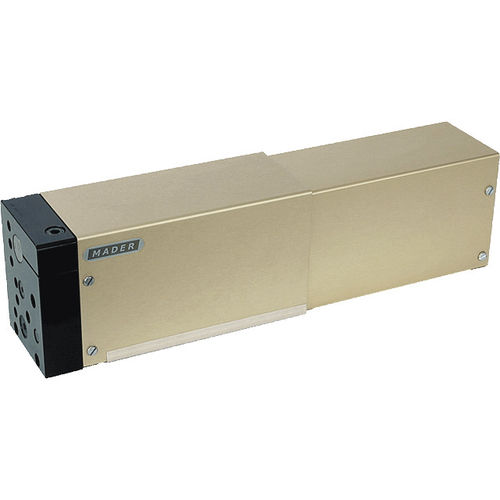

Linear drive unit LEH-PI6-K-6-25 for horizontal installation with sealed ball bearing guide and 6-fold integrated air-and signal feed-through
Producer
Bearing load:
90 – 200 N
Stroke force:
210 N (at 6 bar)
Repeating accuracy:
±0,01 mm
Scope of delivery:
Hydraulic end-position cushioning, proximity switch, 12-pin central cable, 3-pin plug (6x) and O-rings included in the scope of delivery
Cylinder-Ø:
25 mm
Retraction force at 6 bar:
140 N
Drive:
Compressed air (4 – 8 bar), steady, filtered (10 µm) and dried, lubricated or unlubricated
Control:
4/2- or 5/2-way valve
Connection:
M5
Material of casing:
High-strength aluminium, anodised
Movement type:
translatory
