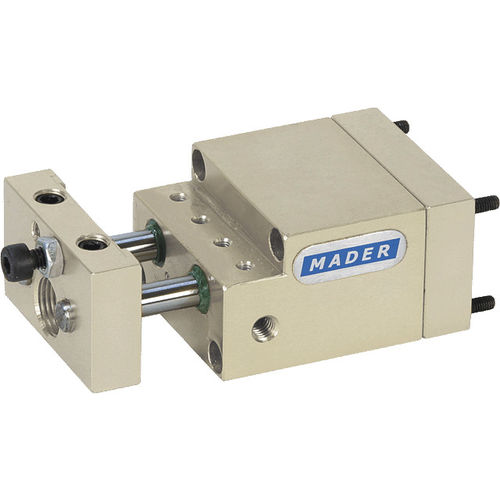

Swivel unit ZP-SE-4

Input torque (effective): 0,8 Nm Repeating accuracy: ± 0,01° Scope of delivery: Proximity switch, exhaust air flow control valve and cable with plug Application: for realisation of a third position with the swivel units SE-K-4 and SE-P2/4-4 Setting range: ± 20° starting at 90° Cylinder-Ø: 2 x 16 mm Air consumption/double stroke: 4 cm³ Weight: 0,18 kg Drive: Compressed air (4 – 8 bar), steady, filtered (10 µm) and dried, lubricated or unlubricated Control: 3/2-way valve Connection: M5 Material of casing: High-strength aluminium, anodised Size: 4 Movement type: rotatory Movement group: swivel Price information: Due to price increases on the raw materials market, some items include a surcharge
