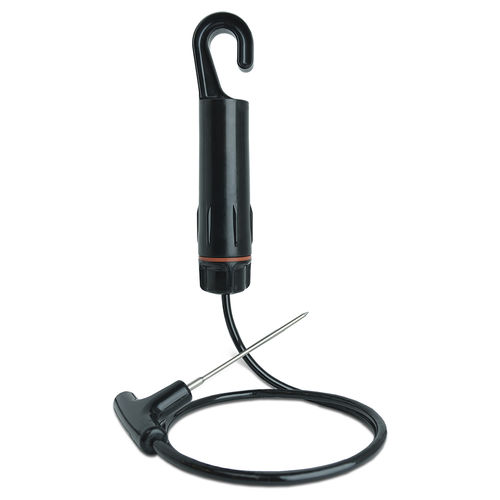

Temperature data-logger RFOT series

wirelessradio frequencywithout display

Overview
The RFOT is a wireless meat temperature data logger. Includes ISO17025 accredited calibration certificate and micro USB cable.

Key Features

• Splash-Resistant
• Continuous Monitoring
• Available in a Variety of Probe Lengths

Probe Types

• RFOT-FR: 1.75 in. (45 mm) fast response probe (for smaller meat products)
• RFOT-4-TD: 4.0 in. (102 mm) transitional diameter probe (for smaller meat products)
• RFOT-4: 4.0 in. (102 mm) probe
• RFOT-7: 7.0 in. (177 mm) probe
• RFOT-12: 12.0 in. (304 mm) probe

Application and Compatibility
The RFOT is suited for smokehouses, ovens and other cooking processes up to 100 °C (212 °F), as well as refrigerators and freezers down to -20 °C (-4 °F). It is splash-resistant and can withstand wash down cycles. The RFOT is compatible with MadgeTech 4 software for start/stop/download operations and supports user-programmable critical control points (cooling flags) for compliance assistance. The RFOT is MadgeTech Cloud Services ready for remote real-time monitoring. Note: RFC wireless interface required.

General
Memory: 21,504 readings
Reading Rate: 1 reading every 2 seconds to 1 every 24 hours
Baud Rate: 115,200
Battery Life: 2 years typical
Material: Body: Radel R-5100; Cable Jacket: Silicone Polyurethane
Dimensions: Body: 7.9 in x 1.5 in dia. (200 mm x 39 mm dia.); Hook ID: 0.625 in (16 mm); Cable Length: 30 in (762 mm)
IP Rating: Splash proof (IP67)
Operating Environment: -20 °C to +100 °C (-4 °F to +212 °F); 0 %RH to 100 %RH non-condensing
Required Interface Package: RFC1000
Approvals: CE, US (FCC), CA (IC)

Temperature
Remote Channel Temperature Resolution: 0.01 °C (0.018 °F)
Remote Channel Temperature Calibrated Accuracy: ±0.1 °C at -10 °C to +100 °C (+14 °F to +212 °F); ±0.5 °C outside of that range
Probe Temperature Range: -50 °C to +200 °C (-58 °F to +392 °F)

Wireless
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power; MadgeNET wireless transceiver with fully bi-directional communication
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical Outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft

Technical specifications

• Model name: RFOT
• Brand: MadgeTech
• Memory capacity: 21,504 readings
• Reading rate: 2 sec to 24 hr intervals
• Battery life: ~2 years (typical)
• Body material: Radel R-5100; Cable jacket: Silicone Polyurethane
• Device dimensions: 200 mm x 39 mm dia. (body)
• Cable length: 30 in (762 mm)
• IP rating: IP67 (splash proof)
• Operating range: -20 °C to +100 °C (-4 °F to +212 °F); 0–100 % RH non-condensing
• Probe ranges available: 1.75", 4.0" (including transitional diameter), 7.0", 12.0"
• Temperature resolution/accuracy: 0.01 °C resolution; ±0.1 °C (‑10 to +100 °C)
• Probe temperature capability: -50 °C to +200 °C
• Wireless: 2.45 GHz IEEE 802.15.4 MadgeNET; typical outdoor LOS up to 2000 ft, indoor up to 500 ft
• Required accessory: RFC1000 wireless interface package
• Approvals: CE, FCC (US), IC (CA)
• Typical product weight (varies by variation): 4.2 lbs
• Part numbers (by probe length): RFOT-FR – 902143-00; RFOT-4 – 902144-00; RFOT-4-TD – 902145-00; RFOT-7 – 902146-00; RFOT-12 – 902147-00
