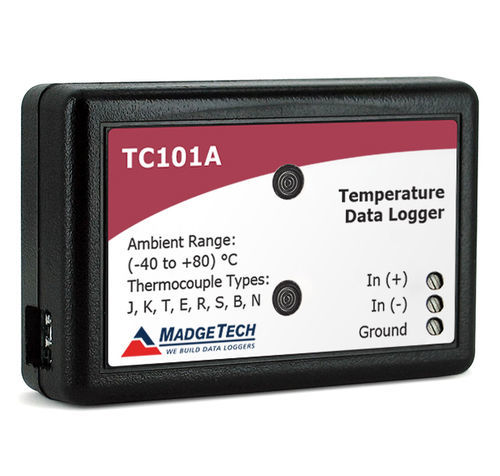

Temperature data-logger TC101A serieswith PC interfaceUSBwithout display
Add to favorites
Compare this product
Characteristics
- Measured quantity
- temperature
- Connector type
- USB, with PC interface
- Display
- without display
- Applications
- for monitoring, for thermocouples
- Other characteristics
- battery-powered, compact, with connector, with external sensor
- Memory capacity
838,041 unit
Description
Short Description
The TC101A is a compact thermocouple-based temperature data logger supplied with an ISO/IEC 17025 Accredited Certificate.
Key Features
Availability
5-7 Business Days
Detailed Description
The TC101A is a one-channel thermocouple temperature data logger with an internal temperature sensor and a remote thermocouple input. It supports eight standard thermocouple types and is available with three connection options to suit field or lab probes. The unit is built in a polycarbonate enclosure and operates over a wide environmental range. Typical battery life is 10 years at a 15-minute reading rate and memory stores up to 838,041 readings. Data acquisition, configuration and analysis are performed with MadgeTech 4 Software. Thermocouple probe sold separately.
General Specifications
Temperature Specifications
Model Variants
The TC101A is a compact thermocouple-based temperature data logger supplied with an ISO/IEC 17025 Accredited Certificate.
Key Features
- Compact size (35 mm x 54 mm x 15 mm)
- Accepts eight thermocouple types (J, K, T, E, R, S, B, N)
- Three thermocouple connection options: Mini Plug, Screw Terminal, Terminal Block
- Long battery life and large memory capacity
Availability
5-7 Business Days
Detailed Description
The TC101A is a one-channel thermocouple temperature data logger with an internal temperature sensor and a remote thermocouple input. It supports eight standard thermocouple types and is available with three connection options to suit field or lab probes. The unit is built in a polycarbonate enclosure and operates over a wide environmental range. Typical battery life is 10 years at a 15-minute reading rate and memory stores up to 838,041 readings. Data acquisition, configuration and analysis are performed with MadgeTech 4 Software. Thermocouple probe sold separately.
General Specifications
- Memory: 838,041 readings
- Reading Rate: 1 reading every second to 1 reading every 24 hours (selectable)
- Baud Rate: 115,200
- Cold Junction Compensation: Automatic
- Channels: 1 Internal & 1 Remote
- LED Indicators: Red & Green
- Battery Life: 10 years typical at a 15 minute reading rate
- Material: Polycarbonate
- Dimensions: 35 mm x 54 mm x 15 mm (1.4 in x 2.1 in x 0.6 in)
- Operating Environment: -40 °C to +80 °C, 0 %RH to 95 %RH non-condensing
- Required Interface Package: IFC200
- Approvals: CE
Temperature Specifications
- Internal Channel Temperature Sensor: Semiconductor
- Internal Channel Temperature Range: -40 °C to +80 °C
- Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)
- Internal Channel Temperature Calibrated Accuracy: ±0.5 °C
- Remote Channel Temperature Sensor: Thermocouple Types J, K, T, E, R, S, B, N
- Remote Channel Temperature Range: Thermocouple dependent (probe dependent; as low as -270 °C to as high as 1820 °C)
- Remote Channel Temperature Resolution & Calibrated Accuracy: Thermocouple dependent
Model Variants
- Model: TC101A
- Thermocouple connection options: Mini Plug (TC101A-MP), Screw Terminal (TC101A-ST), Terminal Block (TC101A-TB)
- Supported thermocouple types: J, K, T, E, R, S, B, N
- Interface requirement: IFC200
