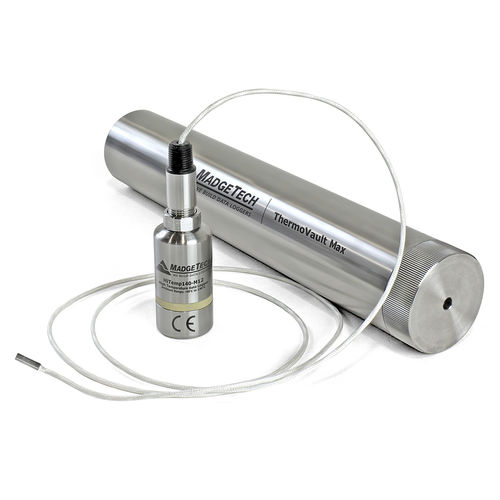

Temperature data-logger DHS

without displayfor pharmaceutical applicationshigh-temperature

Description
The DHS is a data logging system for validating dry heat sterilization cycles. Includes standard calibration certificate.

Key Features

• HiTemp140-M12 High Temperature Data Logger
• ThermoVault Max Extreme Temperature Thermal Barrier
• 36 in. Glass Braided RTD Probe with M12 Connector and Flat Probe Tip OR 36 in. Fiberglass RTD Probe with Stainless Steel Overbraid

Contents (Includes)

• (1) HiTemp140-M12: High Temperature Data Logger
• (1) ThermoVault Max: Extreme Temperature Thermal Barrier
• (1) 36 in. Glass Braided RTD Probe with M12 Connector and Flat Probe Tip OR 36 in. Fiberglass RTD Probe with Stainless Steel Overbraid

Usage and Compatibility
The DHS is capable of withstanding and measuring temperatures up to 400 °C (752 °F), allowing it to record throughout the entire sterilization process. Operation: insert the HiTemp140-M12 into the ThermoVault Max enclosure, screw the cap back on securely and the device is ready to deploy. The HiTemp140-M12 can record and store up to 43,690 time stamped readings and can utilize a wide variety of RTD probe options with its M12 connection. The DHS is compatible with MadgeTech 4 Software for starting, stopping, downloading, and data analysis (graphical, tabular, summary). This system is not IP rated and is for use in dry applications only.

Availability
5-7 Business Days

Literature

• DHS Specification Sheet
• DHS Product User Guide
• HiTemp140-M12 Spec Sheet
• HiTemp140-M12 Product User Guide

Caractéristiques / Spécifications techniques

• Memory: 21,504 readings (specifications table)
• Alternate memory note: HiTemp140-M12: can record and store up to 43,690 time stamped readings (description)
• Reading Rate: 4 readings per second up to 1 reading every 24 hours
• Baud Rate: 125,000
• Battery Life: 1 year typical (1 minute reading rate at +25 °C / +77 °F). User replaceable battery
• Material: 316 Stainless Steel, PTFE, Silicone
• Dimensions (system): 1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L)
• Weight (variation): 8.3125 lbs (listed for product variations)
• IP Rating: This system is not IP rated and is for use in dry applications only
• Operating Environment: -200 °C to 400 °C; %RH to 95 %RH non-condensing
• Required Interface Package: IFC400 or IFC406
• Approvals: CE
• Temperature Sensor (probe): 36 inch Glass Braided RTD depyrogenation probe
• Temperature Range: -200 °C to +400 °C
• Temperature Resolution: 0.0001 Ω, 0.01 °C (0.02 °F)
• Temperature Calibrated Accuracy: ±1.2 °C (-200 °C to +400 °C)
