Temperature data-logger Temp1000IS series
with PC interfacewithout displayfor thermocouples

Temperature data-logger - Temp1000IS series - MadgeTech - with PC interface / without display / for thermocouples
Temperature data-logger - Temp1000IS series - MadgeTech - with PC interface / without display / for thermocouples
Temperature data-logger - Temp1000IS series - MadgeTech - with PC interface / without display / for thermocouples - image - 2
Add to favorites
Compare this product

Characteristics

Measured quantity
temperature
Connector type
with PC interface
Display
without display
Applications
for thermocouples, for harsh environments
Other characteristics
battery-powered, compact, IP68, intrinsically safe, with flush sensor
Memory capacity

Min.: 65,536 unit

Max.: 65,536 unit

Description

Description

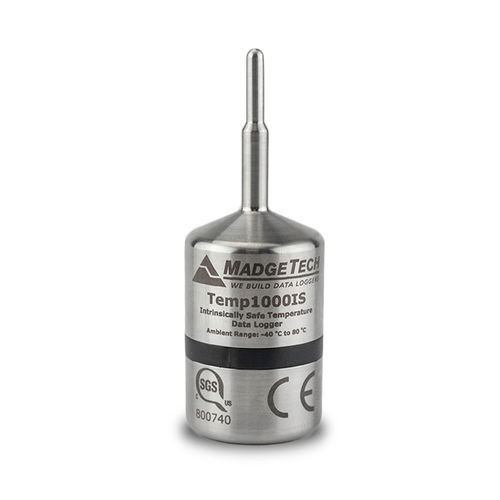

The Temp1000IS is a compact temperature data logger certified by SGS as intrinsically safe for use in hazardous environments. It is offered with either a flush bottom or a key ring end cap for flexible deployment.

Key Features
  • Compact size
  • Intrinsically safe (SGS certified for hazardous environments)
  • Available with flush bottom or key ring end cap


General
Memory: 65,536 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Battery Life: 2 year typical at 15 minute reading rate
Material: 316 Stainless Steel / Radel
Dimensions: 2.66 in x 0.97 in dia. (67.6 mm x 24.6 mm dia.)
Key Ring End Cap: Key ring replaces standard bottom; Thru-hole: 0.150"
IP Rating: IP68
Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (case properly sealed)
Required Interface Package: IFC400
Approvals: CE; FM Class 3600 (latest revision); FM Class 3610 (latest revision); CAN/CSA-C22.2 No. 60079-0:15; CAN/CSA-C22.2 No. 60079-11:14

Temperature
Temperature Sensor: Semiconductor
Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution: 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy: ±0.5 °C (0 °C to ±55 °C), ±0.9 °F (32 °F to 131 °F)

Specifications
  • Model: Temp1000IS
  • Measurement Range: -40 °C to +80 °C (-40 °F to +176 °F)
  • Accuracy: ±0.5 °C (0 °C to ±55 °C)
  • Resolution: 0.01 °C (0.018 °F)
  • Memory Capacity: 65,536 readings (can store up to 32,767 time/date stamped readings per some configurations)
  • Reading Rate: from 1 reading/second to 1 reading/24 hours
  • Battery Life: Typical 2 years at 15 minute logging interval
  • Materials: 316 Stainless Steel / Radel
  • Dimensions: 2.66 in x 0.97 in dia. (67.6 mm x 24.6 mm dia.)
  • IP Rating: IP68
  • Operating Environment: -40 °C to +80 °C, 0–100 % RH (when case properly sealed)
  • Interfaces/Software: Compatible with MadgeTech 4 Software; Required interface package IFC400
  • Certifications/Approvals: SGS certified intrinsically safe for Class I, Division 1 (groups A,B,C,D) and non-incendive for Class I, Division 2 (groups A,B,C,D); CE; FM and CAN/CSA approvals as listed above
