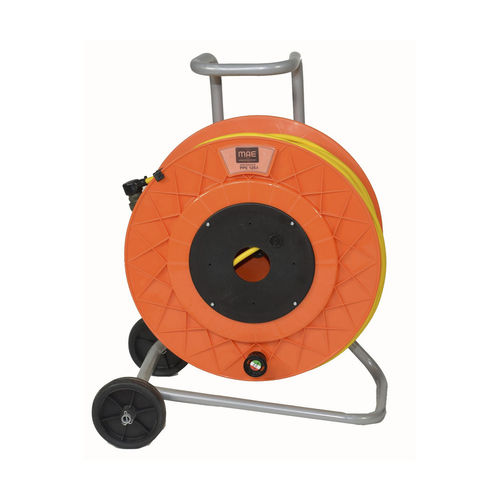

Geoelectric prospecting electrical cable CPE24 series

powerTPE-insulated

Description Geoelectric prospection cable for electrodes connection to Mae instruments. Due to multitouch cable with flexible TPE insulation and yellow polished PUR sheath, Mae cables feature an high resistance to drag and wear in general. Connecting bushes, of mueller clip type, are stored in shells of a special blend of plastic material which makes them resistant and at the same time flexible. Cables are supplied complete with reel and military-type bayonet plug connectors to speed up connection to the instrument. Care in design, realization and testing of each outlet prior to delivery to the end customer, makes Mae cable a reliable component for campaigning with simplicity and speed. Cables are equipped with a standard military connector with bayonet inks, characterized by maximum strength and durability and have protection cap to prevent accumulation of moisture or dirt inside them during transport and deployment phases. High quality of the materials used make cable transport and connection to the instrument extremely simple and at the same time ensure the highest quality in the transfer of acquired data. Cables are provided on a high-strength plastic reel to ensure strength but also lightness during transport and have a retention lock for the connector so as to avoid damages to the same or accidental cable unrolling. This type of survey is based on the calculation of the resistivity from the d.d.p measurements in the ground. The method is based on the introduction of an electric field in the ground through electrodes (input or current) and the measurement of the d.d.p. in other electrodes (of measurement type). From the d.d.p. value, it will be possible
