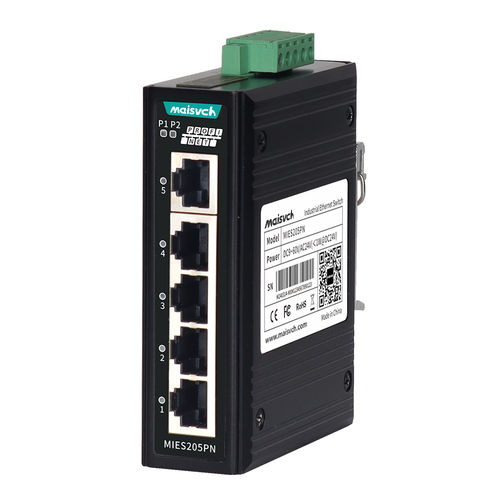

Unmanaged ethernet switch MIES205PN

5 ports10/100BaseT(X)ProfiNet

The MIES205PN is a 5-port 100M unmanaged rail-mounted industrial Ethernet switch designed for industrial communication network applications, it supports PROFINET protocol priority transmission. Each 100M copper port has a 10/100M adaptive function, supports full-duplex or half-duplex mode. Its automatic MDI/MDI-X capability simplifies installation, making it an ideal choice for straightforward, plug-and-play applications. Crafted from high-strength aluminum alloy, this switch is built to withstand harsh industrial environments. Its fanless design ensures quiet operation, while the wide temperature range of -40℃ to +75℃ keeps it performing in extreme conditions. With a 35mm standard rail-mounted setup and industrial-grade components, the MIES205 is engineered for durability and stability. Its high-standard industrial protection design guarantees uninterrupted communication, even in the most challenging scenarios. The product can be widely used in industrial fields such as industrial automation, integrated energy, smart cities, intelligent transportation, and smart factories. Features and Benefits The copper port supports 10/100M, full/half duplex, auto MDI/MDI-X, plug and play Support Jumbo frame transmission, maximum frame length 2kbyte Support half-duplex back pressure or full-duplex IEEE802.3x flow control Support dualDC9~60V or AC24V power input, support dual power redundancy, non-polarity
