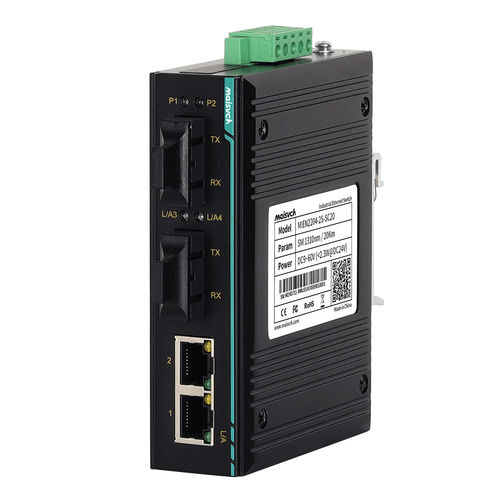

Unmanaged ethernet switch MIEN2204-2F series

4 portslayer 2DIN rail

The MIEN2204-2F series is a 4-port 100M unmanaged industrial Ethernet switch designed specifically for industrial communication network applications. It is mainly used for simple plug-and-play applications. This series of products provides 2*100M fiber ports and 2*100M copper ports, and support optional power options such as DC power input or AC power input. Each 100M copper port has 10/100M adaptive function, supports full-duplex or half-duplex mode, and can automatically perform MDI/MDI-X connection, providing a strong guarantee for industrial automation and making industrial communications smoother and more reliable and faster, it meets customers’ needs for continuous innovation to improve value-added applications. The product selects industrial-grade components, 35mm standard rail-type installation, high-strength metal casing, sturdy and durable, fanless casing for heat dissipation, -40℃~+85℃ wide temperature operation, high-standard industrial protection design, able to adapt to various harsh conditions working environment and stable communication performance. The products can be widely used in industrial automation, integrated energy, smart cities, smart transportation, smart factories and other industrial fields. Features and Benefits The copper port supports 10/100M, full/half duplex, auto MDI/MDI-X, plug and play, convenient and fast Support 1*AC85~264V/DC110~370VDC AC/DC input, or dual DC9~60V redundant power input optional
