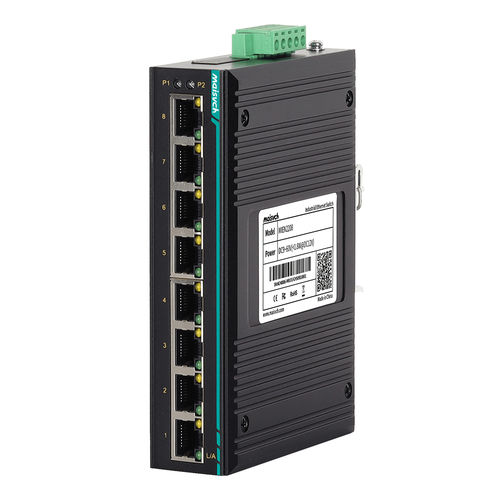

Unmanaged ethernet switch MIEN2208

8 portslayer 2DIN rail

The MIEN2208 is an 8-port 100M unmanaged industrial Ethernet switch. It is primarily used for plug-and-play simplicity in applications. This model provides 8×100M copper ports including DC direct current input or AC alternating current input. Each copper port features 10/100M auto-sensing capability, supports both full-duplex and half-duplex modes, and can auto MDI/MDI-X connections. This provides robust support for industrial automation, ensuring more reliable, and faster industrial communication. It meets the ever-evolving demands of customers for innovative value-added applications. The product is constructed with industrial-grade components, designed for standard 35mm DIN-rail mounting, featuring a high-strength metal casing for durability. It offers fanless heat dissipation, operates in a wide temperature range from -40°C to +85°C, and adheres to high-standard industrial protection design. This enables it to adapt to various challenging working environments while maintaining stable communication performance. The product finds wide applications in industrial automation, comprehensive energy, smart cities, intelligent transportation, smart factories, and various other industrial sectors. Features and Benefits Copper ports support 10/100Mbps, full/half-duplex, auto MDI/MDI-X, plug-and-play Support single AC85~264V/DC110~370V power supply, or dual DC9~60V redundant power inputs either 1 AC 85~264V/DC 110~370VDC input or 2 DC 9~60V inputs (optional), with dual inputs supporting power redundancy
