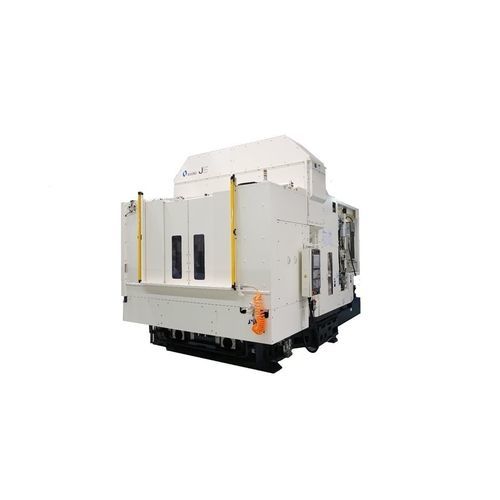

3-axis CNC machining center J5

horizontalgantryHSK A-63

Overview
Extended-stroke variant of the Makino J5 horizontal machining center family for machining large workpieces commonly used in automotive structural components, suspension systems and EV propulsion units. Offered in three layouts with rotary A-axis, rotary B-axis, or combined B-axis over A-axis. Rigid base and spindle design enable high metal removal rates suitable for production environments.

Product details
Stacked-axis configuration simplifies part loading/unloading and integration with automation such as gantry robots while minimizing floor space. The machine features a true 3-point leveling system for rapid, stable installation and reduced need for alignment maintenance. Direct-drive rotary tables accelerate indexing and improve long-term reliability.

Key features

• Three layout options: rotary A-axis, rotary B-axis, or combined B-axis over A-axis.
• Stacked-axis design for easy gantry-robot integration and compact footprint.
• Highly rigid base and spindle architecture to support high metal removal rates.
• True 3-point leveling system for simplified installation and consistent alignment.
• Direct-drive rotary tables for faster indexing and improved reliability.

Technical specifications

• Pallet: 500 x 500 mm standard (400 x 400 mm optional).
• X-stroke: 1,500 mm (59.1 in).
• Y-stroke: 1,000 mm (39.4 in) for HSK-A63; 930 mm (36.6 in) for HSK-A100.
• Z-stroke: 650 mm (25.6 in).
• Payload (maximum workpiece capacity): approximately 600 kg to 2,000 kg depending on rotary axis type.
• A-axis: Unlimited (A-axis type) or +90° / -180° (A/B type).
• B-axis: Unlimited where applicable.
• Spindle options: 14,000 RPM with HSK-A63 (standard); 10,000 RPM with HSK-A100 (optional).
• Spindle peak output: HSK-A63 — 25 kW / 201 N·m; HSK-A100 (optional) — 35 kW / 488 N·m.
• Rapid traverse: X 50,000 mm/min; Y/Z 60,000 mm/min. Cutting feedrate: 50,000 mm/min.
• Tool magazine: HSK-A63 — 44-tool dual-drum (standard); HSK-A100 — 36-tool dual-drum (optional).
• Maximum tool length supported: up to 450 mm.
• CNC: Fanuc-based Pro-L control optimized for high-volume production and ladder-logic integration.
