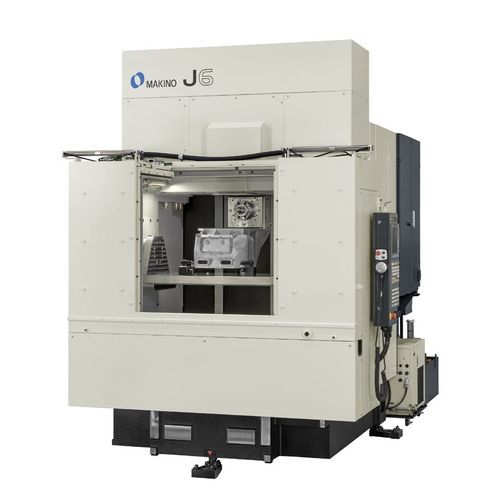

5-axis CNC machining center J6

horizontalfor non-ferrous metalsHSK A-63

Overview
High-speed, high-production single-table horizontal machining center family designed as the core of flexible, high-volume CNC machining lines. The J6 series features a stacked-axis kinematic concept and a single-table layout to promote efficient chip evacuation and consistent thermal/mechanical stability for non-ferrous, near‑net shape components produced in large batches.

Family configuration

• Optimized for near‑net shape, non‑ferrous workpieces and high-throughput production.
• Available in three kinematic variants: two 4‑axis types (A‑axis or B‑axis) and a 5‑axis variant (B over A).
• Compact floor footprint with true three‑point leveling to ensure alignment stability in production cells.

Technical specifications (metric)
A‑Axis: Unlimited (A‑axis type) / +90° / -180° (A/B‑axes type)
B‑Axis: Unlimited (A‑axis, A/B‑axes types)
Spindle speed: 16,000 rpm (12,000 rpm optional)
Spindle taper: HSK‑A63
Rapid traverse: 75,000 mm/min
Cutting feedrate: 50,000 mm/min
Pallet (stroke‑up standard): X: 750 mm Y: 560 mm Z: 500 mm
Maximum workpiece: Varies by kinematic variant
Maximum payload: 500 kg (B‑axis type); 400 kg (A‑axis, A/B‑axes types)
ATC capacity: 30 tools (40 optional)
Chip‑to‑chip time: 2.0 s ± 10%
Maximum tool diameter: Ø100 mm (Ø125 mm with limitations)
Maximum tool weight: 8 kg

Technical specifications (imperial)
Pallet (stroke‑up standard): X: 29.5" Y: 22.0" Z: 19.9"

Key features / technical highlights

• Single‑table horizontal HMC engineered for high-speed, high-production applications.
• Stacked-axis kinematics for controlled chip flow and improved throughput.
• Three kinematic options to match process requirements: 4‑axis (A), 4‑axis (B), 5‑axis (B over A).
• Spindle options up to 16,000 rpm with HSK‑A63 taper for high-speed cutting.
• Very high rapid traverse (75,000 mm/min) and cutting feedrate (50,000 mm/min) for cycle time reduction.
• Standard ATC 30 tools (expandable to 40); short chip‑to‑chip time ~2.0 s.
• Payload and workpiece size scalable by kinematic variant (up to 500 kg).
• Tool diameter and weight limits: Ø100 mm (Ø125 mm with restrictions), max 8 kg per tool.
