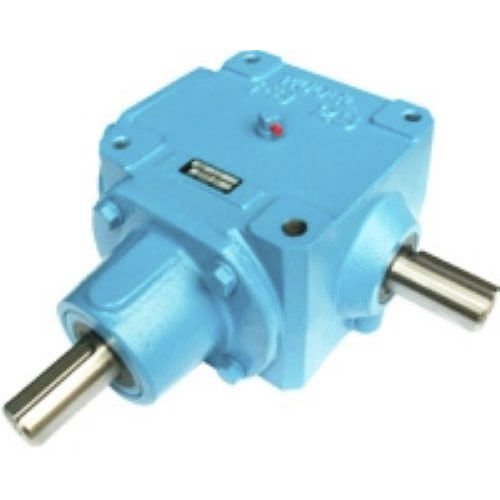

Bevel gear reducer FB series

straight-toothedright anglesolid-shaft

Features Tough design - This design is strong enough to provide the durability required for industrial machinery subjected to severe usage. Compact and light weight - This design has been optimized to be lightweight and compact. A wide variety of options - - Shaft layout: 6 varieties - Models: 5 varieties - Speed ratios: 3 varieties including 1:1, 1.5:1, 2:1 Select the optimal model for each application. Applications - - Agricultural machinery (Often used in working equipment for tractors in particular) - Industrial machines (Used for changing shaft direction and splitting power) Structure - This series uses a straight bevel gear. A special steel is heat treated, ensuring sufficient durability for high transmission capacity. - The shaft is made of carbon steel or a specialty steel in order to provide sufficient durability versus bending force. - A tapered roller bearing is used. Cantilever support is provided for shaft "A" and double-sided support is provided for shaft "B." The bearings receive the thrust and radial load of each shaft. - The housing is manufactured from gray cast iron. - This series uses oil bath lubrication.
