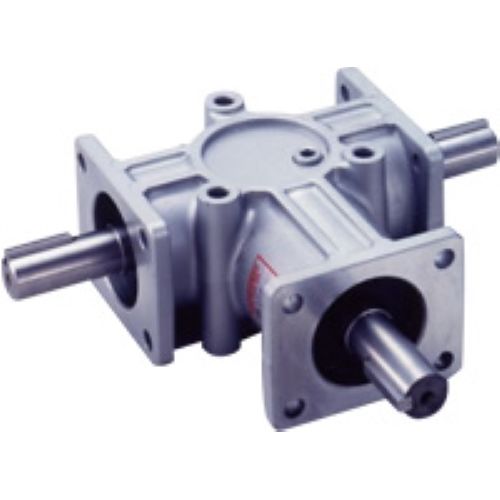

Spiral bevel gearbox TB Series

right anglesolid-shaftdual-shaft

Features Light weight and durable - The case is manufactured from a corrosion resistant aluminum alloy with a baked finish for superior durability combined with light weight. Flexible installation direction - It is possible to install the unit in any direction and installation is easy. Low noise and high efficiency - A spiral bevel gear is used that is heat-treated before lapping to produce smooth operation. Maintenance free design - Long-term use is possible because the unit is filled with high-grade grease. Usable with special products - When an application requires corrosion resistance, Makishinko can also use stainless steel for the shaft. Structure - This series uses a spiral bevel gear. After a special steel is heat treated, it is finished with lapping to improve accuracy. - The shaft is made of heat-treated carbon steel in order to provide sufficient durability versus bending force. - The bearing is a deep groove ball bearing. - Shaft "A" is supported with cantilever support while shaft "B" is supported from both sides. - The housing is manufactured from corrosion resistant aluminum alloy.
