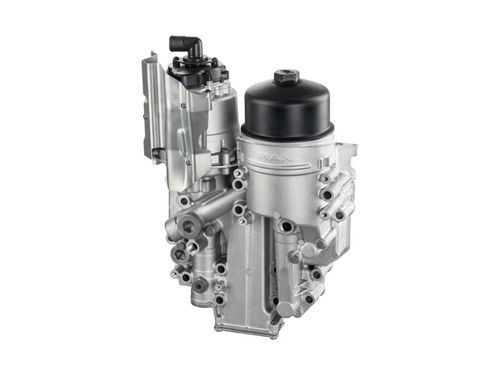

Oil filter cartridge WAVELOCK

depthfinefor the automotive industry

Overview
Oil filters remove solid particles from the oil that accumulate in the lubrication circuit due to contamination and wear. With outstanding particle filtration and dirt holding capacity, oil filters from MANN+HUMMEL offer optimum protection and enable long service intervals even under tough operating conditions. They contribute to the durable and economical operation of engines in commercial vehicles and industrial applications. Engine oil filter systems from MANN+HUMMEL are available as spin-on oil filters as well as filter modules. Depending on requirements, various MULTIGRADE filter media with different filter grades, sizes and service intervals can be used to protect the engine from wear. Additional functions such as oil cooling, oil pressure and oil temperature measurement as well as soot separation can be optionally integrated into customer-specific oil filter modules for commercial vehicle and industrial engines.

WAVELOCK bayonet interface
The innovative WAVELOCK bayonet interface for various liquid filter applications enables easy, quick and clean servicing. The bayonet lock developed by MANN+HUMMEL for mounting spin-on filters sets new standards for easy servicing and reduction of service costs. The WAVELOCK connection uses a bayonet concept with three bayonet wings enabling quick tool-free service by a 90° rotation. Sealing between filter head and spin-on filter is achieved with radial O-rings, providing pressurized sealing, compensation for relative movements and improved component cleanliness by eliminating threaded flow areas.

Product benefits

• Maximum system efficiency thanks to high dirt holding capacity with minimal pressure loss
• Available with a variety of environmentally-friendly high performance MULTIGRADE oil filter media
• Fast, easy and clean service

Advantages of the WAVELOCK system

• Tool-free and thus fast filter service
• Combines the simplicity and variability of a spin-on filter with the requirements of modern filter systems
• Patented bayonet connection as interface between spin-on filter and filter head enables copy protection and prevents the use of inferior filters
• Increased operational reliability due to radial seals to the environment and between dirty and clean sides of the filter
• Improved component cleanliness by eliminating threads in the fluid area
• Robust design using established components from spin-on filter technology
• Modular design covers different sizes and functions
• Improved total cost of ownership

Technical features
Volume flow range: 10 to 200 l / min
Separation efficiency: 50 % at 7 to 20 µm
Service interval: 2 years and up to 300.000 km
Operating temperature: -40 to 130 °C

Technical characteristics / specifications

• Volume flow range: 10 to 200 l / min
• Separation efficiency: 50 % at 7 to 20 µm
• Service interval: 2 years and up to 300.000 km
• Operating temperature: -40 to 130 °C
