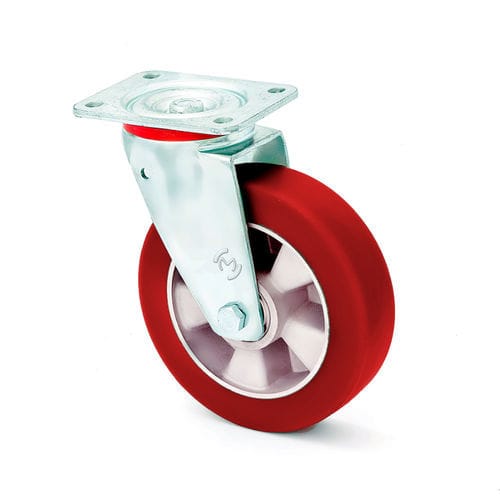

Wheel with solid tire LU/MPA/125/Kaluminumpolyurethaneplate
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Tread material
- polyurethane
- Applications
- plate
- Load capacity
350 kg
(772 lb)- Diameter
125 mm
(4.92 in)- Tread width
40 mm
(1.57 in)
Description
"Swivel Wheel Set LU/MPA/125/K – Aluminum‑Polyurethane wheel – 350 kg
Technical Specifications:
Bearings: ball bearings
Mounting plate size: 105×80 mm
Mounting hole spacing: 80×60 mm
Total height: 155 mm
Wheel with “Marbathane&Soft”® tread: Molded polyurethane bonded to the aluminum hub using special adhesives; hardness 75° ShA; thick tread made of special elastic polyurethane providing high user comfort on all types of floors; non‑marking and floor‑friendly; excellent resistance to abrasion, cuts and tearing; quiet running with low rolling resistance.
Housing: pressed from zinc‑coated steel sheet; swivel head with double ball bearings; sealed. Wheel axle bolted.
Mounting Type: Plate mount
"
