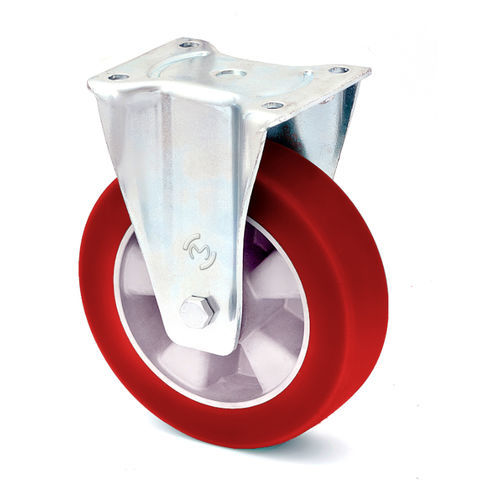

Wheel with solid tire BU/MPA/125/K – 350 kgaluminumpolyurethaneplate
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Tread material
- polyurethane
- Applications
- plate
- Other characteristics
- elastic
- Load capacity
350 kg
(772 lb)- Diameter
125 mm
(4.92 in)- Tread width
40 mm
(1.57 in)
Description
"Fixed Wheel Set BU/MPA/125/K – Aluminum‑Polyurethane wheel – 350 kg
Technical Specifications:
Bearings: ball bearings
Mounting plate size: 102×90 mm
Mounting hole spacing: 80×60 mm
Total height: 155 mm
Wheel with “Marbathane&Soft”® tread: Molded polyurethane bonded to the aluminum hub using special adhesives; hardness 75° ShA; thick tread made of special elastic polyurethane providing high user comfort on all types of floors; non‑marking and floor‑friendly; excellent resistance to abrasion, cuts and tearing; quiet running with low rolling resistance.
Housing: pressed from zinc‑coated steel sheet; swivel head with double ball bearings; sealed. Wheel axle bolted.
Mounting Type: Plate mount
"
Catalogs
No catalogs are available for this product.
See all of MARBA‘s catalogsOther MARBA products
Industrial castors LU/MPA aluminium polyurethane 230 kg - 900 kg
