Wheel with solid tire BU/MPA/200/K – 600 kgaluminumpolyurethanesheet
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Tread material
- polyurethane
- Applications
- plate , sheet
- Other characteristics
- elastic
- Load capacity
600 kg
(1,323 lb)- Diameter
200 mm
(7.87 in)- Tread width
50 mm
(1.97 in)
Description

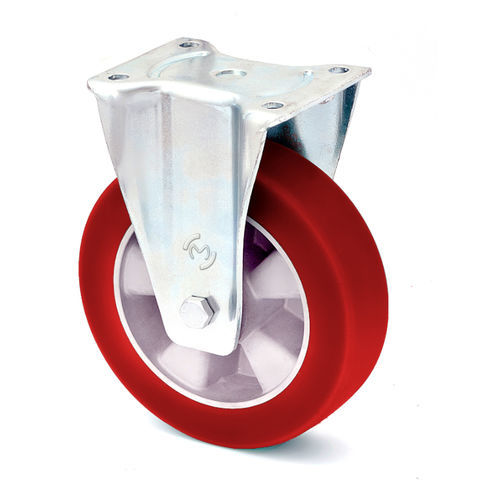

"Fixed Wheel Set BU/MPA/200/K – Aluminum‑Polyurethane wheel – 600 kg
Technical Specifications:
Bearings: ball bearings
Mounting plate size: 135×110 mm
Mounting hole spacing: 105×80 mm
Total height: 245 mm
Wheel with “Marbathane&Soft”® tread: Molded polyurethane bonded to the aluminum hub using special adhesives; hardness 75° ShA; thick tread made of special elastic polyurethane providing high user comfort on all types of floors; non‑marking and floor‑friendly; excellent resistance to abrasion, cuts and tearing; quiet running with low rolling resistance.
Housing: pressed from thick zinc‑coated steel sheet. Wheel axle bolted.
Mounting Type: Plate mount
"
