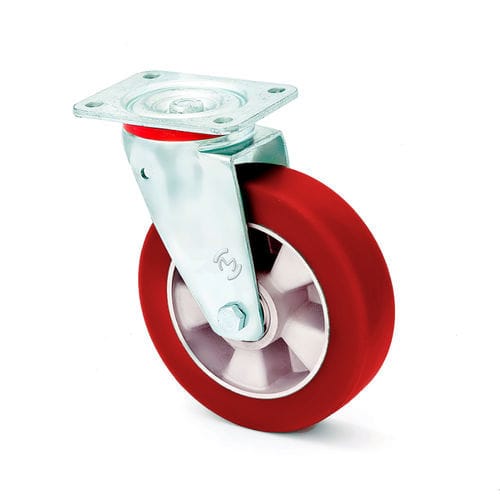

Wheel with solid tire LU/MPA/200/K - 600 Kg
steelpolyurethaneplate

Wheel with solid tire - LU/MPA/200/K - 600 Kg - MARBA - steel / polyurethane / plate
Wheel with solid tire - LU/MPA/200/K - 600 Kg - MARBA - steel / polyurethane / plate
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
steel
Tread material
polyurethane
Applications
plate
Other characteristics
reinforced
Load capacity

600 kg
(1,323 lb)

Diameter

200 mm
(7.87 in)

Tread width

50 mm
(1.97 in)

Description

"Swivel Wheel Set LU/MPA/200/K – Aluminum‑Polyurethane wheel – 600 kg Technical Specifications: Bearings: ball bearings Mounting plate size: 135×110 mm Mounting hole spacing: 105×80 mm Total height: 245 mm Wheel with “Marbathane&Soft”® tread: Housing: pressed from thick zinc‑coated steel sheet; swivel head with double ball bearings in a reinforced head; sealed. Wheel axle bolted. Mounting Type: Plate mount "

Catalogs

No catalogs are available for this product.

See all of MARBA‘s catalogs

Other MARBA products

Industrial castors LU/MPA aluminium polyurethane 230 kg - 900 kg
