Wheel with solid tire LVS/PA/160/KDS-N –600 KgPAball bearingpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- PA
- Hub type
- ball bearing
- Tread material
- polyurethane
- Applications
- plate , sheet
- Other characteristics
- non-marking, elastic, reinforced
- Load capacity
600 kg
(1,323 lb)- Diameter
160 mm
(6.3 in)- Tread width
50 mm
(1.97 in)
Description

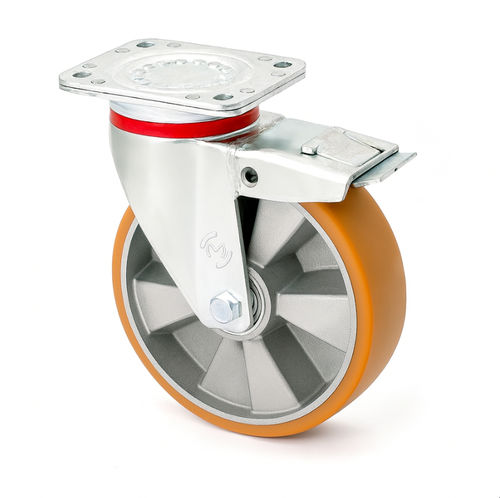

"Swivel Wheel Set LVS/PA/160/KDS-N – Aluminum-Polyurethane Wheel – with brake
Technical parameters:
· Safety factor: 1.3
· Maximum permissible load when using 4 wheels: 1800 kg
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Overall height: 215 mm
Wheel: wheel with polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance.
Housing: pressed from thick galvanized steel sheet, swivel head with double ball bearing raceway in a reinforced head, specially sealed. Wheel axle bolted.
Mounting type: plate
"
