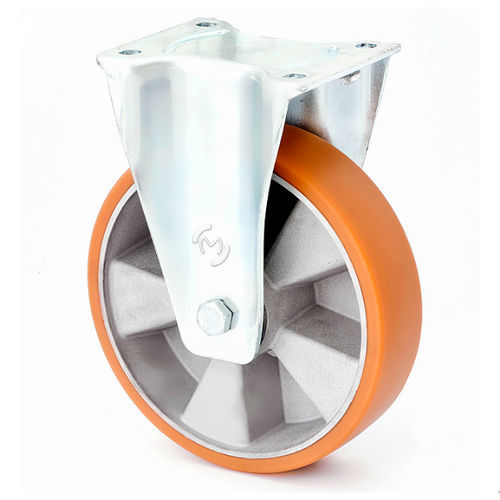

Wheel with solid tire BVS/PA/250/K – 900 Kg
aluminumpolyurethanesheet

Wheel with solid tire - BVS/PA/250/K – 900 Kg - MARBA - aluminum / polyurethane / sheet
Wheel with solid tire - BVS/PA/250/K – 900 Kg - MARBA - aluminum / polyurethane / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
aluminum
Tread material
polyurethane
Applications
plate , sheet
Other characteristics
non-marking, elastic
Load capacity

1,000 kg
(2,205 lb)

Diameter

250 mm
(9.84 in)

Tread width

60 mm
(2.36 in)

Description

"Fixed Wheel Set BVS/PA/250/K – Aluminum-Polyurethane Wheel Technical parameters: · Safety factor: 1.3 · Maximum permissible load when using 4 wheels: 3000 kg (note: side forces) · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Overall height: 295 mm Wheel: wheel with polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance. Housing: pressed from thick galvanized steel sheet. Wheel axle bolted. Mounting type: plate "
