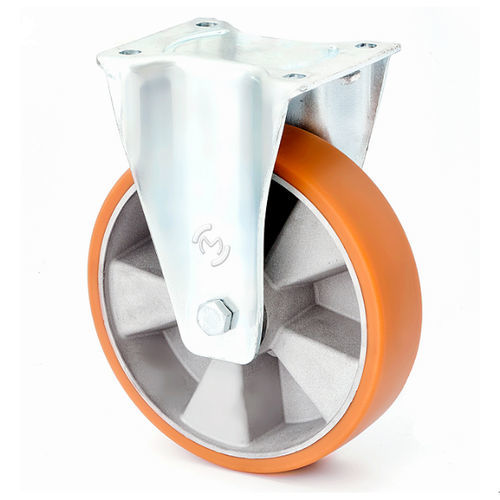

Wheel with solid tire BVS/PA/125/K – 500 Kg
polyurethanepolyurethanesheet

Wheel with solid tire - BVS/PA/125/K – 500 Kg - MARBA - polyurethane / polyurethane / sheet
Wheel with solid tire - BVS/PA/125/K – 500 Kg - MARBA - polyurethane / polyurethane / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
polyurethane
Tread material
polyurethane
Applications
plate , sheet
Other characteristics
non-marking, elastic
Load capacity

500 kg
(1,102 lb)

Diameter

125 mm
(4.92 in)

Tread width

54 mm
(2.13 in)

Description

"Fixed Wheel Set BVS/PA/125/54/K – Aluminum-Polyurethane Wheel Technical parameters: · Safety factor: 1.3 · Maximum permissible load when using 4 wheels: 1500 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Overall height: 178 mm Wheel: wheel with polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance. Housing: pressed from galvanized steel sheet. Wheel axle bolted. Mounting type: plate "
