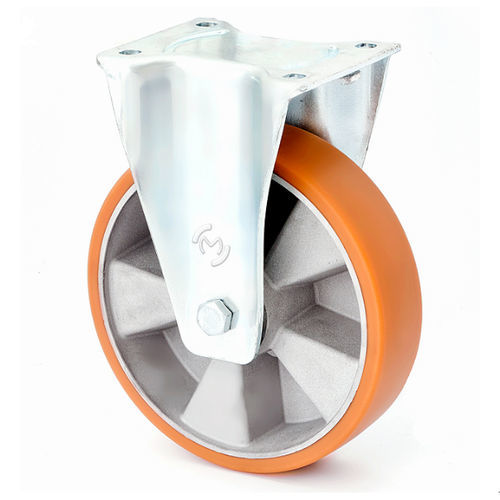

Wheel with solid tire BVS/PA/160/K – 600 Kg
aluminumpolyurethanesheet

Wheel with solid tire - BVS/PA/160/K – 600 Kg - MARBA - aluminum / polyurethane / sheet
Wheel with solid tire - BVS/PA/160/K – 600 Kg - MARBA - aluminum / polyurethane / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
aluminum
Tread material
polyurethane
Applications
plate , sheet
Other characteristics
non-marking, elastic
Load capacity

600 kg
(1,323 lb)

Diameter

160 mm
(6.3 in)

Tread width

50 mm
(1.97 in)

Description

"Fixed Wheel Set BVS/PA/160/K – Aluminum-Polyurethane Wheel Technical parameters: · Safety factor: 1.3 · Maximum permissible load when using 4 wheels: 1800 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Overall height: 215 mm Wheel: wheel with polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance. Housing: pressed from thick galvanized steel sheet. Wheel axle bolted. Mounting type: plate "
