Wheel with solid tire LCW/F3/250/K – 400 kg
black rubberball bearingsheet

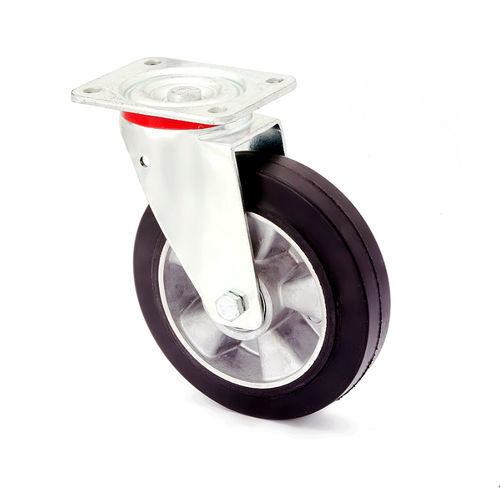

Wheel with solid tire - LCW/F3/250/K – 400 kg - MARBA - black rubber / ball bearing / sheet
Wheel with solid tire - LCW/F3/250/K – 400 kg - MARBA - black rubber / ball bearing / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
black rubber
Hub type
ball bearing
Applications
plate , sheet
Other characteristics
elastic
Load capacity

400 kg
(882 lb)

Diameter

250 mm
(9.84 in)

Tread width

50 mm
(1.97 in)

Description

"Swivel Wheel Set LCW/F3/250/K – Aluminum-Rubber Wheel – 400 kg Technical parameters: · Safety factor, maximum load when using 4 wheels: 800 kg (note: side forces when turning) · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 295 mm Wheel: black rubber “ELASTIK”® tread vulcanized onto aluminum hub, high riding comfort, hardness 68° ShA, elastic, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance, shock-absorbing. Housing: stamped from zinc-coated steel sheet, swivel head with double ball bearing, sealed. Wheel axle bolted. Mounting type: top plate. "
