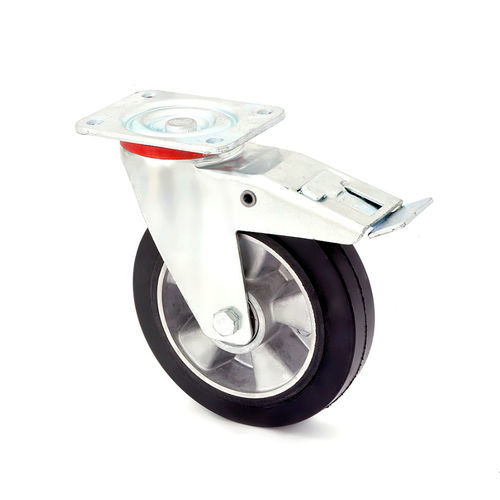

Wheel with solid tire LCW/F3/125/KDS-N – 200 kg
rubberball bearingsheet

Wheel with solid tire - LCW/F3/125/KDS-N – 200 kg - MARBA - rubber / ball bearing / sheet
Wheel with solid tire - LCW/F3/125/KDS-N – 200 kg - MARBA - rubber / ball bearing / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
rubber
Hub type
ball bearing
Applications
plate , sheet
Other characteristics
non-marking, elastic
Load capacity

200 kg
(441 lb)

Diameter

125 mm
(4.92 in)

Tread width

50 mm
(1.97 in)

Description

"Swivel Wheel Set LCW/F3/125/KDS-N – Aluminum-Rubber Wheel with Brake – 200 kg Technical parameters: · Safety factor: 1.3, maximum load when using 4 wheels: 600 kg · Bearings: ball bearings · Plate size: 105x80 mm · Mounting hole spacing: 80x60 mm · Total height: 155 mm Wheel: black rubber “ELASTIK”® tread vulcanized onto aluminum hub, high riding comfort, hardness 68° ShA, elastic, non-marking and non-staining, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: stamped from zinc-coated steel sheet, swivel head with double ball bearing, sealed. Wheel axle bolted. Mounting type: top plate. "
