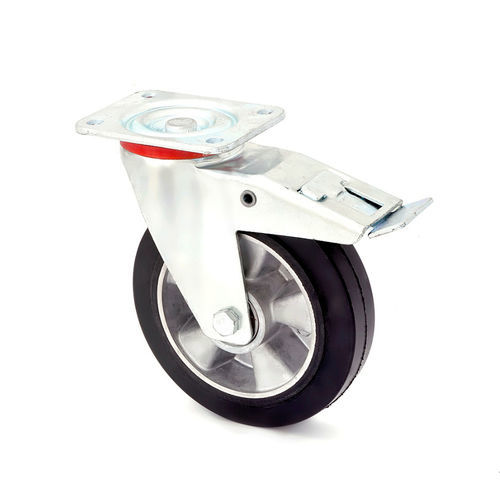

Wheel with solid tire LCW/F3/080/KDS-N – 120 kg
rubberball bearingsheet

Wheel with solid tire - LCW/F3/080/KDS-N – 120 kg - MARBA - rubber / ball bearing / sheet
Wheel with solid tire - LCW/F3/080/KDS-N – 120 kg - MARBA - rubber / ball bearing / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
rubber
Hub type
ball bearing
Applications
plate , sheet
Other characteristics
elastic
Load capacity

120 kg
(265 lb)

Diameter

80 mm
(3.15 in)

Tread width

40 mm
(1.57 in)

Description

"Swivel Wheel Set LCW/F3/080/KDS-N – Aluminum-Rubber Wheel with Brake – 120 kg Technical parameters: · Wheel diameter: 80 mm · Safety factor: 1.3, maximum load when using 4 wheels: 360 kg · Bearings: ball bearings · Plate size: 105x80 mm · Mounting hole spacing: 80x60 mm · Total height: 100 mm Wheel: black rubber “ELASTIK”® tread vulcanized onto aluminum hub, high riding comfort, hardness 68° ShA, elastic, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance, shock-absorbing. Housing: stamped from zinc-coated steel sheet, swivel head with double ball bearing, sealed. Wheel axle bolted. Mounting type: top plate. "
