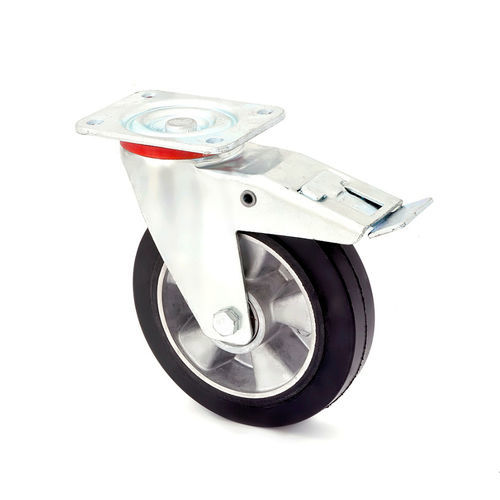

Wheel with solid tire LCW/F3/160/KDS-N – 350 kg
rubberball bearingsheet

Wheel with solid tire - LCW/F3/160/KDS-N – 350 kg - MARBA - rubber / ball bearing / sheet
Wheel with solid tire - LCW/F3/160/KDS-N – 350 kg - MARBA - rubber / ball bearing / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
rubber
Hub type
ball bearing
Applications
plate , sheet
Other characteristics
elastic
Load capacity

350 kg
(772 lb)

Diameter

160 mm
(6.3 in)

Tread width

50 mm
(1.97 in)

Description

"Swivel Wheel Set LCW/F3/160/KDS-N – Aluminum-Rubber Wheel with Brake – 350 kg Technical parameters: · Safety factor: 1.3, maximum load when using 4 wheels: 1050 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 190 mm Wheel: black rubber “ELASTIK”® tread vulcanized onto aluminum hub, high riding comfort, hardness 68° ShA, elastic, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance, shock-absorbing. Housing: stamped from zinc-coated steel sheet, swivel head with double ball bearing, sealed. Wheel axle bolted. Mounting type: top plate. "
