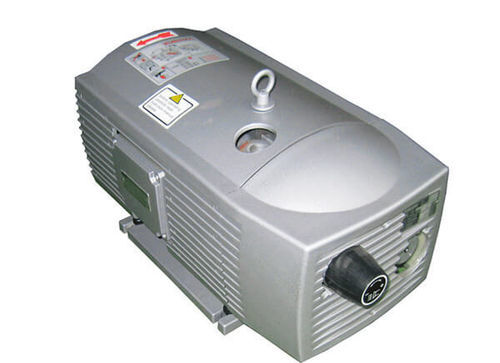

Rotary vane compressor MVS-P040

airelectricoil-free

MVS-P dry-running rotary vane compressors are particularly suitable for high flow rates at medium pressures. Their robust design makes them the right choice for 24-hour operation in industrial applications. They are particularly suitable for demanding industrial applications. They are equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime. This, combined with the compressors’ accessible design, results in minimal compressor downtime. - Applications: - Printing industry - Graphic arts industry - Electric engineering - Automation - Aeration - Other - Product dimensions: - Dimensions: a: 220, b: 198, e: 130, e1: -, f: 260, f1: 238, g: 238, g1: 125, g2: 173, h: 140, h1: 227, h2: 253, h3: 290, l: 178, k: 585, k1: 625, e: 54.8, q: 245, q1: - - Technical data: - Flow rate: 40 m³/h (50 Hz), 48 m³/h (60 Hz) - Ultimate pressure: +1000 bar - Motor power: 1.85 kW (50 Hz), 2.2 kW (60 Hz) - Nominal motor speed: 1420 rpm (50 Hz), 1700 rpm (60 Hz) - Noise level: 65 dB(A) (50 Hz), 68 dB(A) (60 Hz) - Weight: 38 kg - Cooling system: Air - Permissible ambient temperature: 0-40 ºC - Gas inlet/outlet: 3/4" G(BSP)
