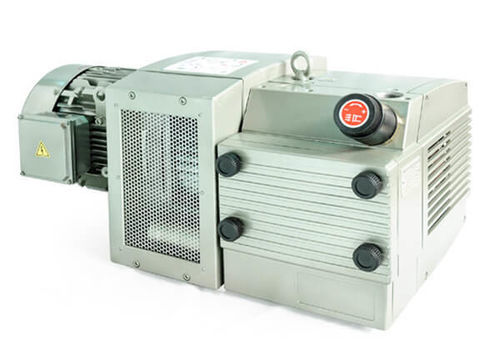

Rotary vane compressor MVS-P140

airstationaryoil-free

MVS-P dry-running rotary vane compressors are particularly suitable for high flow rates at medium pressures. Their robust design makes them the right choice for 24-hour operation in industrial applications. They are particularly suitable for demanding industrial applications. They are equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime. This, combined with the compressors’ accessible design, results in minimal compressor downtime. - Applications: - Printing industry - Graphic arts industry - Electric engineering - Automation - Aeration - Other - Product dimensions / photographs: Click to enlarge dimensional diagrams or images of the product. - Technical data: - Flow rate 50/60 Hz: 140/168 m³/h - Ultimate pressure: 0.5 / 1.0 / 1.5 bar - Motor power 50/60 Hz: 5.5/6.4 kW or 7.8/9.3 kW - Nominal motor speed 50/60 Hz: 1420/1700 rpm - Noise level 50/60 Hz: 80/82 dB(A) or 83/84 dB(A) - Weight: 136–140 kg - Cooling system: Air - Permissible ambient temperature: 0–40 ºC - Gas inlet/outlet: 1-1/2" G(BSP) - Graphite vanes: EK60 - Robust design for 24-hour operation - Superior quality graphite vanes (EK60) - Minimal compressor downtime - Accessible design
