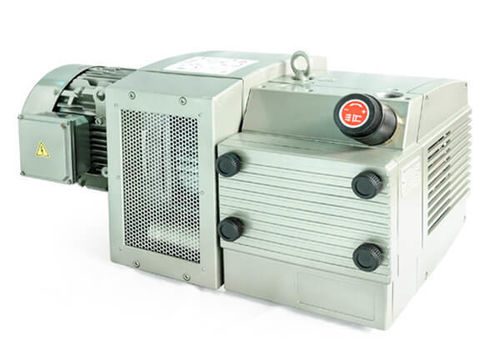

Rotary vane compressor MVS-P100

airindustrialmedium-pressure

MVS-P compressors are particularly suitable for high flow rates at medium pressures. Their robust design makes them the right choice for 24-hour operation in industrial applications. They are particularly suitable for demanding industrial applications. They are equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime. This, combined with the compressors’ accessible design, results in minimal compressor downtime. Applications: - Printing industry - Graphic arts industry - Electric engineering - Automation - Aeration - Other Technical Specifications: - Flow rate 50/60 Hz: 100/120 m³/h - Ultimate pressure: 0.5/1.0/1.5 bar - Motor power 50/60 Hz: 4.0/4.8 kW, 5.5/6.4 kW - Flow rate 50/60 Hz: 1420/1700 rpm - Noise level 50/60 Hz: 75/77 dB(A), 76/78 dB(A) - Weight: 110 kg, 132 kg - Cooling system: Air - Permissible ambient temperature: 0-40 ºC - Gas inlet: 1-1/2" G(BSP) - Gas outlet: 1-1/2" G(BSP) - High flow rates at medium pressures - 24-hour operation - Robust design for demanding industrial applications - Superior quality graphite vanes (EK60) - Minimal compressor downtime - Accessible design for easy maintenance
