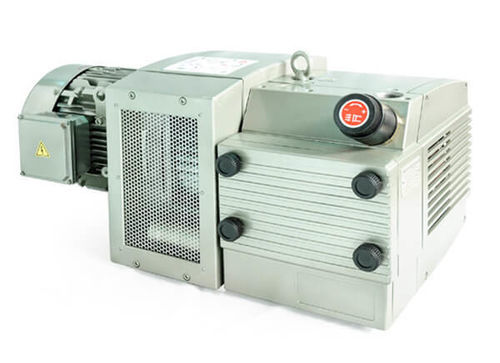

Rotary vane compressor MVS-P080

airelectrically-poweredstationary

MVS-P dry-running rotary vane compressors are particularly suitable for high flow rates at medium pressures. Their robust design makes them the right choice for 24-hour operation in industrial applications. They are particularly suitable for demanding industrial applications. They are equipped with superior quality graphite vanes (EK60) to avoid maintenance downtime. This, combined with the compressors’ accessible design, results in minimal compressor downtime. Applications: - Printing industry - Graphic arts industry - Electric engineering - Automation - Aeration - Other Product dimensions: Click to enlarge dimensional diagrams or images of the product. Dimensions table: Model: MVS-P080 - a: 327 - b: 190 - b1: 95 - c: 30 - d2: G1" - e: 138 - e1: 65 - f: 250 - g: 353 - g1: 195 - g2: 141 - h: 162 - h1: 289 - h3: 312 - h4: 328 - l: 96 - B5/250k: 397 - k1: 415 - k2: 448 - km: 306 - kl: 703 - o: 46 - p: 289 - S1: M8 Technical data: - Flow rate 50/60 Hz: 60/72 m³/h - Ultimate pressure: 0.5/1.0/1.5 bar - Motor power 50/60 Hz: 2.4/3.0/3.5 kW - Nominal motor speed 50/60 Hz: 1,420/1,700 rpm - Noise level 50/60 Hz: 71/74 dB(A) - Weight: 74/83 kg - Cooling system: Air - Admissible ambient temperature: 0-40 ºC - Gas inlet/outlet: G1" (BSP) Key features / Technical specifications: - Dry-running rotary vane compressor - High flow rates at medium pressures - Robust design for 24-hour operation - Superior quality graphite vanes (EK60) - Minimal compressor downtime - Suitable for demanding industrial applications - Air cooling system - Noise level: 71-74 dB(A) - Weight: 74-83 kg - Admissible ambient temperature: 0-40 ºC - Gas inlet/outlet: G1" (BSP)
