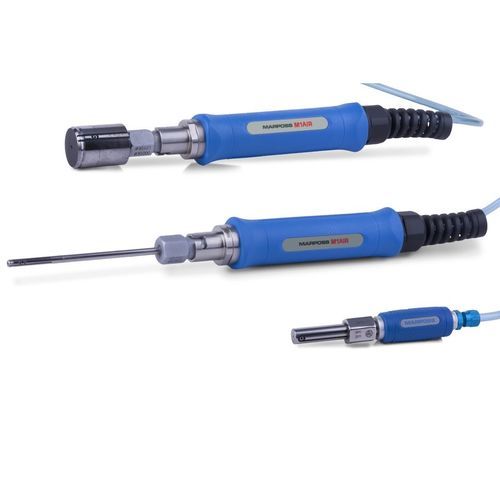

Inside micrometer M1 AIR

boreanalog

Marposs pneumatic hand held gauges are particularly suitable for checking workpieces with very tight tolerances (from IT2 to IT7) with a roughness of 0.8 μm Ra. The measuring principle is based on the reading of the pressure variation, proportional to the variations in distance between the nozzles of the gauge and the part. The measurement is performed using the balanced pneumatic bridge technique, with differential pressure transducers and electronic signal amplification. The signal is then converted from analog to digital directly on board the Air / Electronics converters. For tolerances 60 μm, Marposs can design and provide dedicated custom made gauges. • Gauging of components with very tight tolerance • No risk of scratching the part
