Chain conveyor FPF-P 2045

table top chaininclinedstraight

Product description

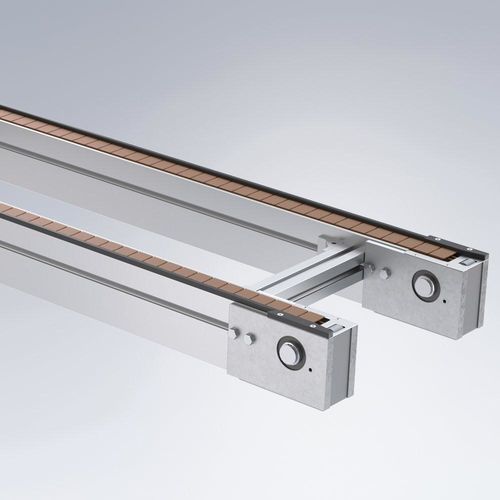

The FPF-P 2045 flat-top chain conveyor is part of the Versamove standard workpiece-pallet system. Designed primarily as a double-line conveyor, it transports workpiece pallets and rigid goods at moderate loads and speeds. The conveyor supports accumulated operation and enables transfer through 90° and 180° curves. Internal chain return within the profile provides a compact layout and reduces accident risk. 10 mm T-slots along both sides allow easy integration into existing systems and mounting of stands, side guides, sensors and other accessories.

Benefits

• Double-line or multi-line configuration for pallets and rigid products
• Compatible with Versamove standard pallet systems
• Available 90° and 180° curve modules
• Quieter operation compared with other conveyor types
• Low maintenance requirements
• Optional antistatic design

Technical specifications

• Type of goods: crates, workpiece carriers
• Conveying ways: straight & incline up to 20°
• Length: custom 500–6000 mm
• Width: 235–495 mm
• Speed: up to 18 m/min
• Maximum load: up to 400 kg
• Chain: steel roller chain with plastic plates
• Drive versions: AF
• Belt body profile: mk 2261
