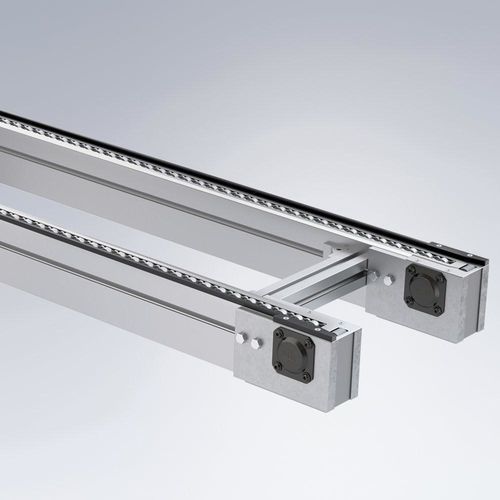

Roller conveyor SRF-P 2045

chaininclinedstraight

Product description
The SRF-P 2045 roller-chain accumulation conveyor is part of the Versamove standard workpiece-carrier system. It is designed primarily as a double- or multi-strand conveyor for the transport of workpiece carriers and dimensionally stable loads at medium weights and moderate speeds. Free-running rollers ensure smooth operation even in dusty environments while minimising accumulation forces. The chain return inside the profile reduces risk and enables a compact layout. Dual 10 mm system grooves on both sides simplify integration and mounting of stands, side guides, sensors and accessories. An adjustable tensioning and continuous-lubrication station is available as an option.

Key features

• Double- or multi-strand design
• Modular integration with Versamove standard
• Free-running roller design for low accumulation forces

Benefits of the SRF-P 2045

• Conveyor for workpiece carriers, crates and pallets
• Reliable operation in dusty, dirty or oily environments
• Suitable for elevated operating temperatures
• Optional antistatic version

Technical data
Conveyed goods: crate, pallet, workpiece carrier
Transport sections: straight & inclines up to 20°
Conveyor length: customisable 500–10,000 mm
Conveyor width: 260–2,000 mm
Conveying speed: up to 30 m/min
Typical total load: up to 500 kg
Chain: double roller chain with steel rollers and straight plates
Drive types: AC, AF, BC, BF
Bed profile: mk 2010

Characteristics / Specifications

• Type: roller-chain accumulation conveyor
• Model: SRF-P 2045
• Part of system: Versamove standard (workpiece-carrier system)
• Suitable conveyed goods: crate / pallet / workpiece carrier
• Transport sections: straight sections and inclines up to 20°
• Conveyor length: 500–10,000 mm (custom)
• Conveyor width: 260–2,000 mm
• Conveying speed: up to 30 m/min
• Max. typical total load: up to 500 kg
• Chain design: double roller chain with steel rollers and straight plates
• Drive: multiple versions (AC, AF, BC, BF)
• Options: tensioning and continuous-lubrication station, antistatic version
