skate wheel conveyor / chain / horizontal / accumulation
SRF-P 2012

Add to MyDirectIndustry favorites
Compare this product
skate wheel conveyor / chain / horizontal / accumulation skate wheel conveyor / chain / horizontal / accumulation - SRF-P 2012


  • Technology:

    skate wheel, chain

  • Other characteristics:

    horizontal, accumulation, for heavy loads, transfer

  • Maximum load:

    1,000 kg (2,204.623 lb)

  • Speed:

    30,000 mm/min (19.69 in/s)


Accumulating roller chain conveyor for interlinking workstations and providing buffering between workstations in the heavy load range.

- Powerful
- Sturdy
- Low maintenance

Features of the SRF-P 2012

- Basis for constructing transfer lines with accumulated operation
- Ideal for low-maintenance and durable use in accumulated and cycling operation
- For interlinking and buffering between workstations and for transporting workpiece carriers
- Large selection of drives

Product Description

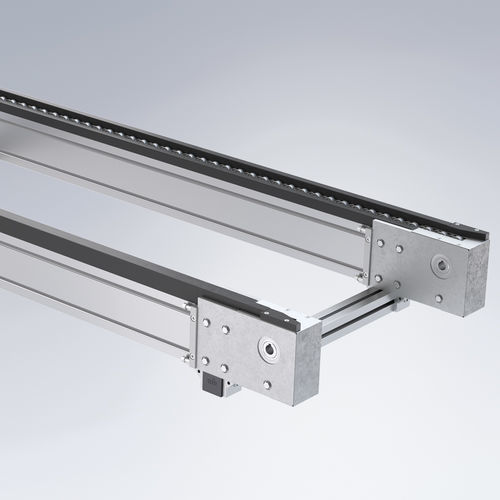

The SRF-P 2012 accumulating roller chain conveyor is intended as the basis for constructing transfer lines for loads up to 1000 kg. The free-spinning conveyor rollers run smoothly, evening during accumulated operation. They also keep accumulation forces to a minimum. Typical applications include interlinking or buffering between workstations and building complete transfer lines.

Longitudinal slots in the mk 2012 profile beam provide flexible options for connecting struts, guides, sensors and components from the mk profile system. Like all chain conveyors, the system can be equipped with an optional tensioning device and continuous lubrication device to extend the service intervals.
