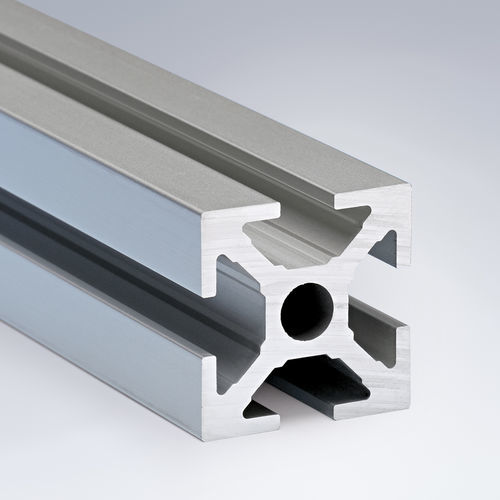

Aluminum profile 40 series
anodized aluminumgroovedrectangular

aluminum profile
aluminum profile
aluminum profile
aluminum profile
aluminum profile
aluminum profile
aluminum profile
aluminum profile
Add to favorites
Compare this product


Characteristics

Material
aluminum, anodized aluminum
Configuration
grooved, rectangular
Applications
door-mounted, construction, industrial, frame, connecting, for conveyors, for clean rooms, platform, for housings, for storage containers, functional, for stairways, for railway vehicles, agriculture, for machine frames and housings, for machine guards, for shelving, for conveyor frames, for the automotive industry, sealing, for mounting photovoltaic panels, flooring or step, for sliding doors, guide, for support fabrication, window, protection, for railing, for ladders, for stairs
Other characteristics
lightweight, closed, open
Width

Max.: 160 mm (6.3 in)

40 mm (1.6 in)

Min.: 40 mm (1.6 in)

Height

Max.: 160 mm (6.3 in)

40 mm (1.6 in)

Min.: 40 mm (1.6 in)

Description

Series 40 construction profiles are based on a grid dimension of 40 x 40 mm and multiples of this value. They are generally used for lighter machine frames, guarding, assembly work stations, exhibit construction and work platforms. Choosing the correct profile depends on its intended use and the necessary load capacity and design requirements. The slot width of 10 mm and slot depth of 12 mm are designed for use with DIN M8 screws. However, M4, M5 and M6 screws can also be used. The profile’s drill channels are designed for tapping threads and for inserting a threaded insert or HELICOIL. The series also includes cleanroom profiles, which are ideally suited for areas with stringent requirements for cleanliness and design. They feature a closed surface that is completely flat. Telescopic profiles, cover profiles and profiles with an additional slot for attaching panelling round out the versatile Series 40 product range. Certain profile cross sections are also available as curved profiles.
