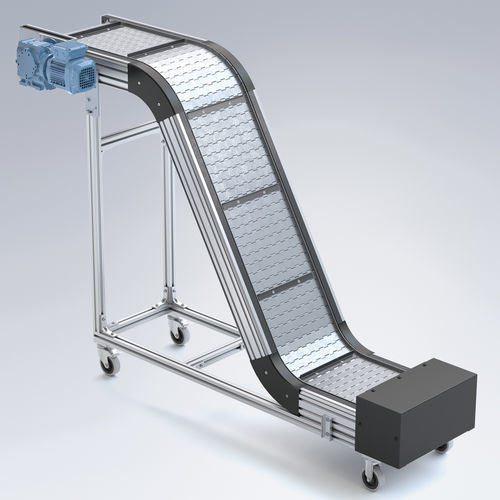

Modular belt conveyor KFS-P 2040.86

modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
Add to favorites
Compare this product


modular belt
Other characteristics
modular, mobile, compact, flexible, sturdy
Maximum load

150 kg
(330.693 lb)


12,000 mm/min
(7.87 in/s)


Inclined hinged plate belt with steel chain for vertical transport in harsh environments. - Sturdy - Compact - Flexible Features of the KFS-P 2040.86 - Vertical transport for connecting different heights - For harsh environmental conditions - For transporting stamped, cast, forged or wooden parts and for hot product - High belt loads possible - Transverse cleats for transporting small pieces or bulk product Product Description With its compact conveyor frame made from aluminium profile technology, the KFS-P 2040.86 conveyor system is ideally suited for demanding continuous duty in multi-shift operation. The hinged plate belt is equipped with a steel chain and fully guided by wear strips to make it suitable for harsh environmental conditions and for transporting product such as stamped, cast, forged or wooden pieces. With a gap of 1 to 3 mm between the chain and the side rail, this conveyor system is not suitable for pointed stamping scraps or metal chips. The particularly robust steel chain is also available in a stainless steel or perforated design on request. It is suitable for transporting hot product up to 200° and can also be configured in a straight line.
